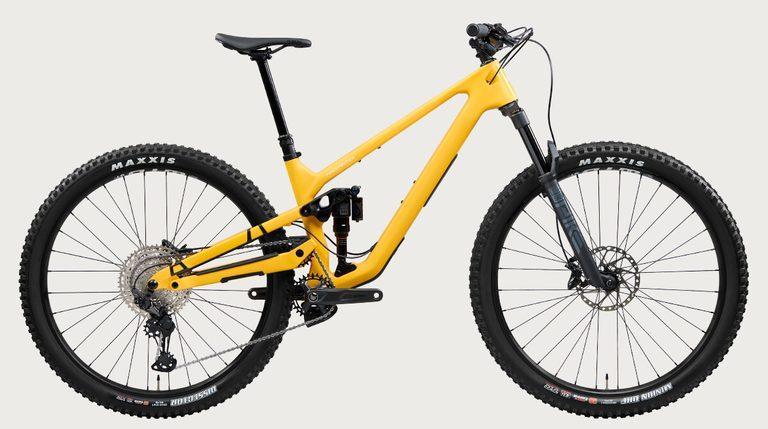

Norco Optic C3 Gen 3

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29"

Suspension

Full

Rear travel

125 mm

Rear axle spacing

148 mm

Seatpost diameter

34.90 mm

Max tire size

2.35" – 2.6"

Stock build

• ForkRockShox Pike Select, 140mm Travel, 44mm Offset
• Rear ShockRockShox Super Deluxe Select+, 185x50 TR
• Front BrakeShimano BR-MT520
• Rear BrakeShimano BR-MT520
• Front Brake RotorShimano RT-64, 180mm rotor, C-Lock
• Rear Brake RotorShimano RT-64, 180mm rotor, C-Lock
• Front Brake PadsShimano BR-MT520, 4 piston, Metallic Pads
• Rear Brake PadsShimano BR-MT520, 4 piston, Metallic Pads
• Brake LeversShimano Deore MT520 4-P
• Bottom BracketShimano Sealed Bearing, BSA 73mm
• CassetteShimano Deore CS-M6100-12, 10-51T, 12sp
• ChainShimano Deore CN-M6100, 12spd
• CranksetShimano Deore FC-MT512, 30T, CL55, 165mm (S1,S2) - 170mm (S3,S4,S5)
• Front WheelShimano HB-MT410 Front, 15x110mm Boost, Center Lock, WTB ST i30 29in 32H
• Rear WheelShimano FH-MT510, 12x148 Boost, Micro Spline, 32H, C-lock
• Rear DerailleurShimano XT M8100, 12sp
• ShiftersShimano Deore SL-M6100-R, 12spd
• Handlebar6061 Alloy, 800mm 25mm Rise
• StemNorco 6061, 40mm Length, 35mm Clamp
• GripsPropalm 130mm Length
• HeadsetFSA No. 57 ZS, Carbon Top Cover
• SaddleSDG Bel Air V3 Lux Alloy
• SeatpostTranzX YS105 Dropper, 34.9mm, 150mm (1), 170mm (2), 200 (3, 4), 230mm (5)
• Front TireMaxxis Minion DHF, 3C Max Terra EXO, 29x2.5", Folding
• Rear TireMaxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
