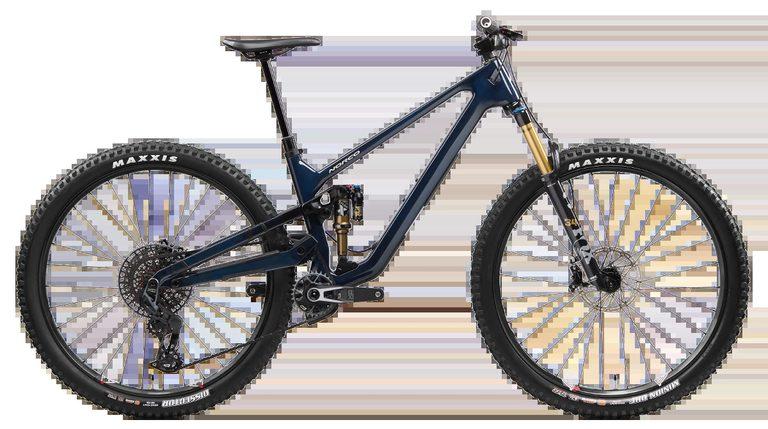

2025 Norco Optic C1 Gen 3

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29"

Suspension

Full

Rear travel

125 mm

Rear axle spacing

148 mm

Max tire size

2.35" – 2.6"

Stock build

• ForkFox 34 Factory Float, GripX, HSC/LSC/LSR, 140mm, 44mm Offset, Fender Included
• Rear ShockFox FLOAT X Factory, 185x50mm Trunnion
• Front BrakeSRAM Code Silver Stealth
• Rear BrakeSRAM Code Silver Stealth
• Front Brake RotorSRAM Centerline (180mm)
• Rear Brake RotorSRAM Centerline (180mm)
• Front Brake Padssintered pads
• Rear Brake Padssintered pads
• Brake LeversSRAM Code Silver Stealth 4-Piston
• Bottom BracketSRAM DUB MTB Wide, 73mm, BSA threaded
• CassetteSRAM 1295 Eagle T-Type, 10-52T
• ChainSRAM X0 Eagle T-Type, 12spd
• CranksetSRAM X0 Eagle, DUB, 30T steel, T-Type, 55mm chainline, 170mm length
• Front WheelIndustry Nine 1/1, 15x110 Boost, 32H, 6-bolt
• Rear WheelIndustry Nine 1/1 Rear, 12x148mm Boost, XD, 6-bolt, We Are One Faction Carbon 29in i27 32H
• Rear DerailleurSRAM X0 Eagle AXS T-Type
• ShiftersSRAM Pod Ultimate Controller
• Front TireMaxxis Minion DHF, 3C Max Terra EXO, 29x2.5", Folding
• Rear TireMaxxis Dissector 29x2.4 WT, 60 TPI, 3C Max Terra, EXO, TR
