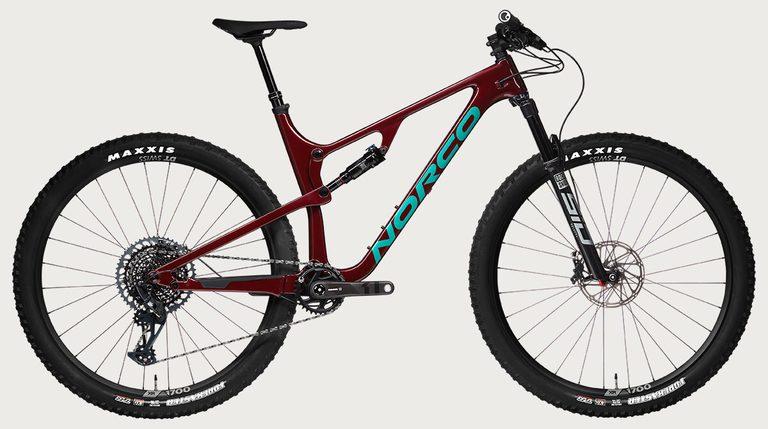

2023 Norco Revolver FS 1 120

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29"

Suspension

Full

Rear travel

120 mm

Rear axle spacing

148 mm

Seatpost diameter

31.60 mm

Bottom bracket

PF92

Max tire size

2.0" - 2.35"

Stock build

• ForkRockShox SID Select+, Ride Dynamics developed 3 position, TwistLoc remote adjust, Debon Air, 15x110mm, 44mm offset, 120mm Travel
• Rear ShockRockShox SIDLuxe Select+, Ride Dynamics developed 3 position, TwistLoc remote adjust, Solo Air, 190x45mm
• Front BrakeSRAM G2 RSC
• Rear BrakeSRAM G2 RSC
• Front Brake RotorSRAM Centerline (180mm)
• Rear Brake RotorSRAM Centerline 6-bolt - 160mm
• Front Brake PadsSRAM Organic Pads
• Rear Brake PadsSRAM Organic Pads
• Brake LeversSRAM G2 RSC
• Bottom BracketSRAM BB DUB PF92
• CassetteSRAM XG1275 Eagle, 10-52T
• ChainSRAM GX Eagle, 12-speed
• CranksetSRAM X1 Eagle DUB Carbon, 32T, 170mm (S), 175mm (M, L, XL)
• Front WheelDT Swiss XR 1700 Spline, 15x110mm Boost, 6 Bolt
• Rear WheelDT Swiss XR 1700 Spline, 12x148mm Boost, XD, 6 Bolt
• Rear DerailleurSRAM GX Eagle
• ShiftersSRAM GX Eagle
• HandlebarButted 6061 Alloy, 780mm, 20mm Rise
• Stem6061 Alloy 60mm Length, 35mm Clamp
• GripsErgon GA20 Lock-On
• HeadsetFSA Internal Cartridge Bearing
• SaddleFizik Alpaca Terra, Wingflex
• SeatpostX-Fusion Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm
• Front TireMaxxis Forekaster 2.35" 3C/TR/EXO
• Rear TireMaxxis Forekaster 2.35" 3C/TR/EXO
