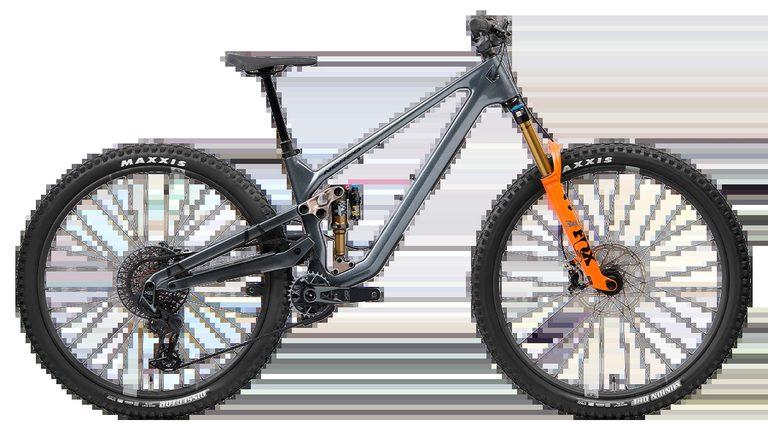

2024 Norco Optic C1 Gen 3

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29"

Suspension

Full

Rear travel

125 mm

Rear axle spacing

148 mm

Seatpost diameter

34.90 mm

Bottom bracket

BSA Threaded

Max tire size

2.6"

Stock build

• ForkFox Factory 34 FLOAT GRIP2, HSC/LSC/HSR/LSR, LNT, 140mm Travel, 44mm Offset, Fender Included
• Rear ShockFox FLOAT X Factory, 185x50mm Trunnion
• Front BrakeSRAM Level Stealth Silver, 4-Piston, Sintered Pads
• Rear BrakeSRAM Level Stealth Silver, 4-Piston, Sintered Pads
• Front Brake RotorSRAM Centerline (200mm)
• Rear Brake RotorSRAM Centerline (180mm)
• Front Brake Padssintered pads
• Rear Brake Padssintered pads
• Brake LeversSRAM Level Silver
• Bottom BracketSRAM DUB BSA Threaded
• CassetteSRAM Eagle T-Type 1295, 10-52T
• ChainSRAM XO Eagle T-Type
• CranksetSRAM X0 Eagle T-Type, Boost, 30T AL Ring, 170mm
• Front WheelIndustry Nine 1/1 12x110mm Boost, 6-Bolt
• Rear WheelIndustry Nine 1/1, 12x148mm Boost, XD, 6-Bolt
• Rear DerailleurSRAM X0 AXS Eagle T-Type
• ShiftersSRAM Pod Controller, MMX Bridge
• HandlebarDeity Skywire Carbon 800mm, 25mm Rise
• StemNorco Alloy, 40mm Length, 35mm Clamp
• GripsDMR DeathGrip
• HeadsetFSA #57 E Sealed Bearing, Tapered
• SaddleFizik Alpaca Terra, Wingflex
• SeatpostOneUp One Up Adjustable Dropper, 34.9mm, 150mm (1), 180mm (2), 210mm (3, 4), 240mm (5)
• Front TireMaxxis Minion DHF 29x2.5 WT, 3C MaxxTerra, EXO, TR
• Rear TireMaxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
