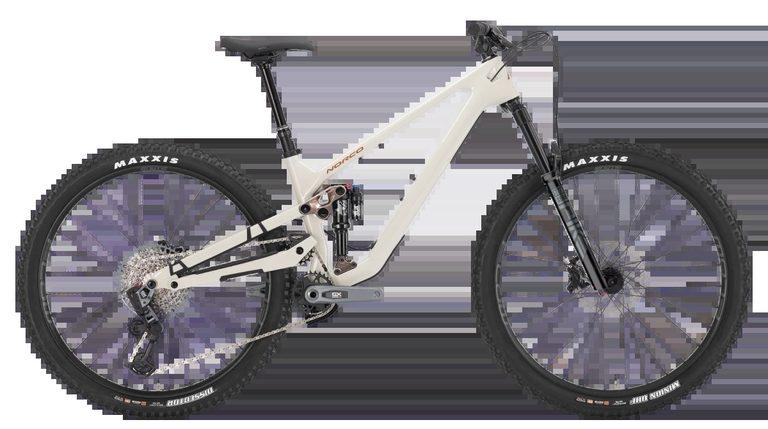

Norco Optic C2 Gen 3

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29"

Suspension

Full

Rear travel

125 mm

Rear axle spacing

148 mm

Seatpost diameter

34.90 mm

Bottom bracket

BSA Threaded

Max tire size

2.6"

Stock build

• ForkRockShox Pike Select+, 140mm Travel, 44mm Offset, Fender
• Rear ShockFox FLOAT X Performance Elite, 2 Pos, 185x50mm Trunnion
• Front BrakeSRAM Code R
• Rear BrakeSRAM Code R
• Front Brake RotorSRAM Centerline (200mm)
• Rear Brake RotorSRAM Centerline (180mm)
• Front Brake Padssintered pads
• Rear Brake Padssintered pads
• Brake LeversSRAM Code R hydraulic disc
• Bottom BracketSRAM DUB BSA Threaded
• CassetteSRAM T-Type 1275 10-52T
• ChainSRAM GX Eagle T-Type, Flattop, 12spd
• CranksetSRAM GX Eagle T-Type 30T, 170mm
• Front WheelRace Face Trace, 15x110mm Boost, 6 Bolt
• Rear WheelRace Face Trace, 12x148mm Boost, XD, 6 Bolt
• Rear DerailleurSRAM GX Eagle AXS T-Type, 12spd
• ShiftersSRAM Pod Controller, MMX Bridge
• HandlebarDeity Ridgeline, 800mm, 25mm Rise
• StemNorco Alloy, 40mm Length, 35mm Clamp
• GripsDMR DeathGrip
• HeadsetFSA #57 E Sealed Bearing, Tapered
• SaddleFizik Alpaca Terra, Wingflex
• SeatpostTranzX YS105 Dropper, 34.9mm, 150mm (1), 170mm (2), 200 (3, 4), 230mm (5)
• Front TireMaxxis Minion DHF 29x2.5 WT, 3C MaxxTerra, EXO, TR
• Rear TireMaxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
