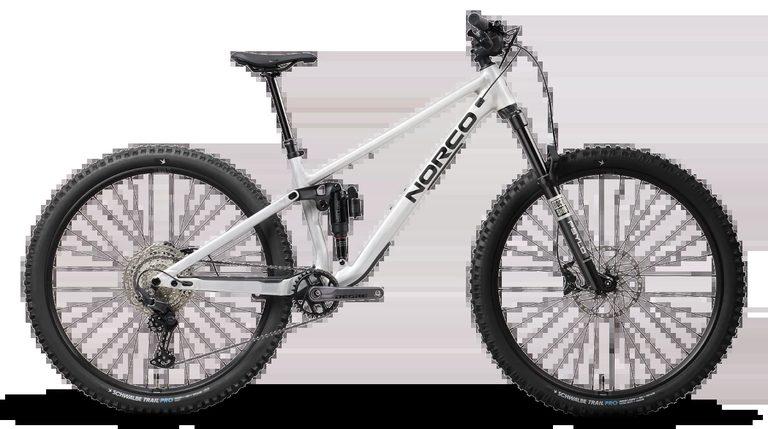

Norco Fluid A2 Gen 3

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Aluminum

Wheel size

29"

Suspension

Full

Rear travel

130 mm

Rear axle spacing

148 mm

Seatpost diameter

31.60 mm

Headset standard

Tapered 1-1/8"- 1.5", (ZS44/28.6 | ZS56/40)

Bottom bracket

BSA 73mm

Max tire size

2.35" – 2.5"

Stock build

• ForkRockShox Psylo Gold RC (140mm)
• Rear ShockRockShox Super Deluxe, 210x50mm Std eyelet
• Front BrakeShimano BR-MT420
• Rear BrakeShimano BR-MT420
• Front Brake RotorShimano SM-RT64, 203mm, C-lock
• Rear Brake RotorShimano SM-RT64, 180mm, C-lock
• Front Brake Padsmetallic pads
• Rear Brake Padsmetallic pads
• Brake LeversShimano BL-MT401
• Bottom BracketShimano BSA 73mm
• CassetteShimano Deore CS-M6200-12, 10-51T, 12sp
• ChainShimano Deore CN-M6100
• CranksetShimano Deore
• Front WheelShimano HB-TC500-15-B,15x110mm Boost, 32H, C-lock
• Rear WheelShimano FH-TC500-MS-B, 12x148mm Boost, Micro Spline, 32H, C-lock
• Rear DerailleurShimano Deore RD-M6200, SGS, 12spd
• ShiftersShimano Deore SL-M6200-IR, I-Spec EV, 12spd
• HandlebarNorco 6061 DB Alloy, 800mm, 25mm rise (S1,S2) - 35mm rise (S3,S4,S5)
• StemNorco 6061, 40mm Length, 35mm Clamp
• GripsNorco 6061 DB Alloy, 800mm, 25mm Rise(S2) - 35mm Rise(S3,S4,S5)
• HeadsetTapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40)
• SaddleWTB Solano Med, 142x240 mm, Steel Rails
• SeatpostTranzX YSI34QL , 31.6mm, 125 (S1) -150mm (S2) -170mm (S3) -200mm (S4,S5)
• Front TireSchwalbe Magic Mary, Trail casing, Ultra Soft , Radial, 29x2.5"
• Rear TireSchwalbe Romy, Trail casing, Soft, Radial, 29x2.4"
