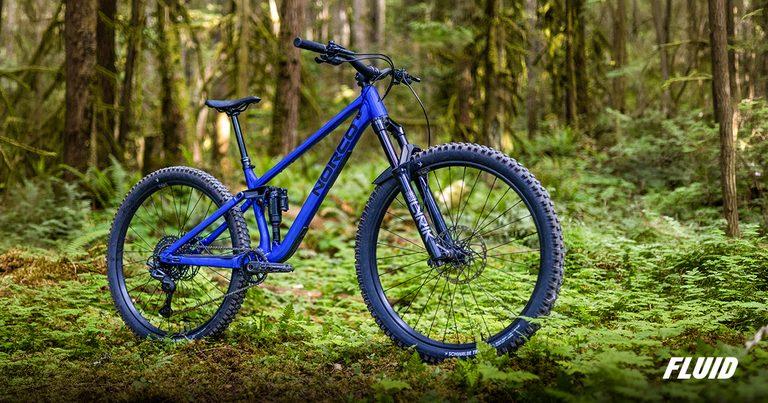

Norco Fluid A1 Gen 3

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Aluminum

Wheel size

29/27.5"

Suspension

Full

Rear travel

130 mm

Rear axle spacing

148 mm

Seatpost diameter

31.60 mm

Headset standard

Tapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40)

Bottom bracket

BSA 73mm

Stock build

• ForkRockShox Lyrik Select +, 140mm Travel, 44mm offset, Fender Included
• Rear ShockRockShox Super Deluxe Select RT, 210x50mm Std eyelet
• Front BrakeShimano SLX BR-M7120
• Rear BrakeShimano SLX BR-M7120
• Front Brake RotorShimano SM-RT64, 203mm, C-lock
• Rear Brake RotorShimano RT-64, 180mm, C-lock
• Front Brake Padsmetallic pads
• Rear Brake Padsmetallic pads
• Brake LeversShimano SLX BL-M7100
• Bottom BracketShimano BSA 73mm
• CassetteShimano Deore XT CS-M8200-12 (10-51T)
• ChainShimano Deore XT CN-M8100, 12sp
• CranksetShimano Deore
• Front WheelShimano HB-TC500-15-B,15x110mm Boost, 32H, C-lock
• Rear WheelShimano FH-TC600-MS-B, 12x148mm Boost, Micro Spline, 32H, C-lock
• Rear DerailleurShimano Deore XT , SGS, 12sp
• ShiftersShimano Deore XT SL-M8210-IR, 12sp
• HandlebarNorco 6061 DB Alloy, 800mm, 25mm rise (S1,S2) - 35mm rise (S3,S4,S5)
• StemNorco 6061, 40mm Length, 35mm Clamp
• GripsWTB Wavelength, 140mm Length
• HeadsetTapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40)
• SaddleWTB Solano Med, 142x240 mm, Steel Rails
• SeatpostTranzX YSI160 RAD+, 31.6mm, 125 (S1) -150mm (S2) -170mm (S3) -200mm (S4,S5)
• Front TireSchwalbe Magic Mary, Trail casing, Ultra Soft , Radial, 29x2.5"
• Rear TireSchwalbe Roamy, Trail casing, Soft, Radial, 27.5x2.4" (S1) - 29x2.4" (S2,S3,S4,S5)
