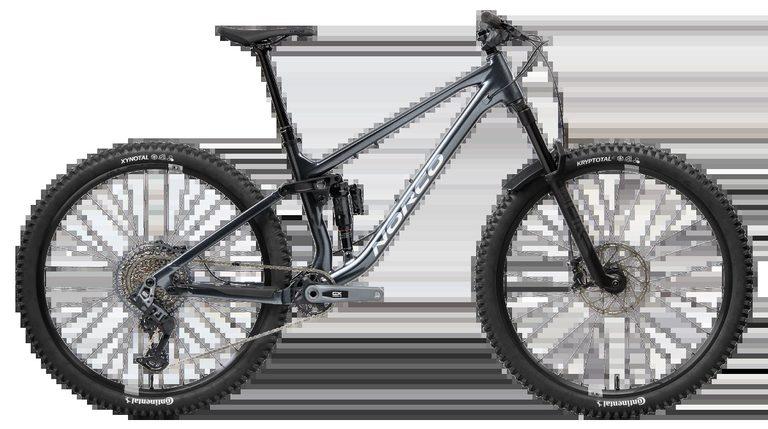

Norco Fluid FS A1 SRAM

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Aluminum

Wheel size

29"

Suspension

Full

Rear travel

130 mm

Rear axle spacing

148 mm

Seatpost diameter

34.90 mm

Max tire size

2.4" – 2.6"

Stock build

• ForkRockShox Pike Select+, 140mm Travel, 44mm Offset, Fender
• Rear ShockRockShox Super Deluxe Select+ (210x50mm)
• Front BrakeSRAM DB8
• Rear BrakeSRAM DB8
• Front Brake RotorSRAM Centerline (200mm)
• Rear Brake RotorSRAM Centerline (180mm)
• Front Brake PadsSRAM DB8 4 Piston, Sintered Pads
• Rear Brake PadsSRAM DB8 4 Piston, Sintered Pads
• Brake LeversSRAM DB8
• Bottom BracketSRAM DUB BSA Threaded
• CassetteSRAM 1275 Eagle T-Type, 10-52T, 12sp
• ChainSRAM GX Eagle T-Type, Flattop, 12spd
• CranksetSRAM GX Eagle DUB T-Type, 30T, 170mm (S), 175mm (M - XXL)
• PedalsVP Nylon Flat
• Front WheelBear Pawls Sealed Bearing, 15x110mm Boost, 6 Bolt
• Rear WheelBear Pawls MS12S, 12x148mm Boost, Micro Spline, 6 Bolt
• Rear DerailleurSRAM GX Eagle AXS T-Type, 12spd
• ShiftersSRAM Pod Controller, MMX Bridge
• HandlebarButted 6061 Alloy, 800mm, 25mm Rise
• StemNorco 6061, 40mm Length, 35mm Clamp
• GripsWTB Wavelength, 140mm Length
• HeadsetFSA #57 E Sealed Bearing, Tapered
• SaddleSDG Bel Air V3 Lux Alloy
• SeatpostTranzX YSI34 Dropper, 34.9mm, 150mm (S), 170mm (M), 200mm (L, XL, XXL)
• Front TireContinental Kryptotal Trail 2.4", Folding
• Rear TireContinental Xynotal Trail 2.4", Folding
