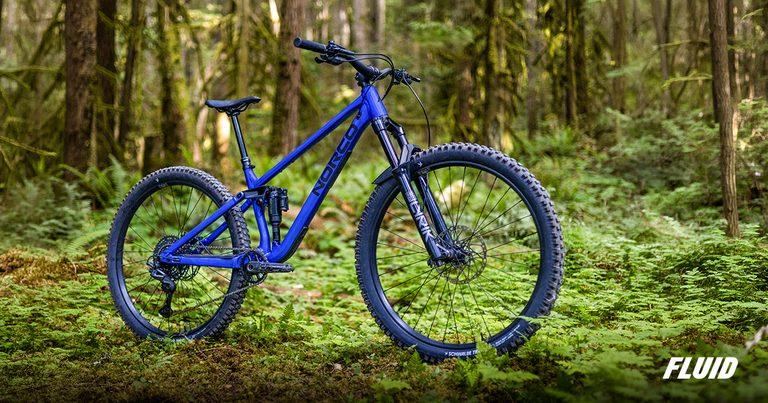

Norco Fluid A3 Gen 3

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Aluminum

Wheel size

29"

Suspension

Full

Rear travel

130 mm

Rear axle spacing

148 mm

Seatpost diameter

31.60 mm

Headset standard

Tapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40)

Bottom bracket

BSA 73mm

Max tire size

2.35" – 2.5"

Stock build

• ForkRockShox Recon RL 140mm, 44mm Offset
• Rear ShockDVO Opal, 210x50mm, Std eyelet
• Front BrakeTektro HD-M535, 4 Piston, Organic Pads
• Rear BrakeTektro HD-M535, 4 Piston, Organic Pads
• Front Brake RotorTektro TR203, 203mm, 2.3mm Thickness, 6-bolt
• Rear Brake RotorTektro TR203, 180mm, 2.3mm Thickness, 6-bolt
• Front Brake PadsResin Pads
• Rear Brake PadsResin Pads
• Brake LeversTektro HD-M535
• Bottom BracketShimano BSA 73mm
• CassetteShimano CUES CS-LG300-10, 11-48T, 10sp
• ChainShimano LG-500, 10sp
• CranksetShimano CUES FC-U6000-1, 30T, CL55, 165mm(S1,S2) - 170mm(S3,S4,S5)
• Front WheelFormula DC-511, 15x110mm Boost, 32h, 6-bolt
• Rear WheelFormula DC-3248,12x148mm Boost, HG, 32h, 6-bolt
• Rear DerailleurShimano CUES U6000 GS
• ShiftersShimano CUES U6000 w/optical gear display, 10 speed
• HandlebarNorco 6061 DB Alloy, 800mm, 25mm rise (S1,S2) - 35mm rise (S3,S4,S5)
• StemNorco 6061, 40mm Length, 35mm Clamp
• GripsWTB Wavelength, 140mm Length
• HeadsetTapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40)
• SaddleWTB Solano Med, 142x240 mm, Steel Rails
• SeatpostTranzX YSI34QL , 31.6mm, 125 (S1) -150mm (S2) -170mm (S3) -200mm (S4,S5)
• Front TireSchwalbe Magic Mary, Trail casing, Ultra Soft , Radial, 29x2.5"
• Rear TireSchwalbe Romy, Trail casing, Soft, Radial, 29x2.4"
