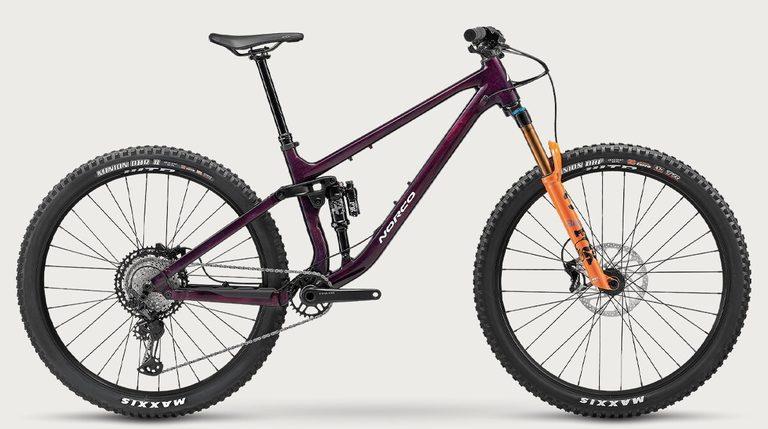

Norco Fluid FS A1

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Aluminum

Wheel size

29"

Suspension

Full

Rear travel

130 mm

Rear axle spacing

148 mm

Seatpost diameter

34.90 mm

Headset standard

Sealed Bearing, Tapered

Bottom bracket

BSA Threaded

Max tire size

2.4" – 2.6"

Stock build

• ForkFox 36 SL Factory GRIP X, 140mm Travel, 44mm Offset
• Rear ShockFox FLOAT X Performance Elite, 2-pos, 210x50mm, Custom Tune
• Front BrakeTRP Trail EVO, 4-piston caliper, hydraulic disc
• Rear BrakeTRP Trail EVO, 4-piston caliper, hydraulic disc
• Front Brake RotorTRP TR203-29, 203mm
• Rear Brake RotorTRP TR180-29, 180mm
• Front Brake PadsTRP Trail EVO, 4 Piston, Organic Pads
• Rear Brake PadsTRP Trail EVO, 4 Piston, Organic Pads
• Brake LeversTRP Trail Evo
• Bottom BracketPraxis M24, BSA Threaded
• CassetteShimano XT CS-M8100, 10-51, 12 Speed
• ChainShimano Deore XT CN-M8100, 12sp
• CranksetPraxis G2 Cadet M24, 30T, 170mm (S), 175mm (M - XXL)
• PedalsVP Nylon Flat
• Front WheelBear Pawls Sealed Bearing, 15x110mm Boost, 6 Bolt
• Rear WheelBear Pawls MS12S, 12x148mm Boost, Micro Spline, 6 Bolt
• Rear DerailleurShimano XT M8100, 12sp
• ShiftersShimano XT M8100, I-Spec
• HandlebarButted 6061 Alloy, 800mm, 25mm Rise
• StemNorco 6061, 40mm Length, 35mm Clamp
• GripsWTB Wavelength, 140mm Length
• HeadsetFSA #57 E Sealed Bearing, Tapered
• SaddleSDG Bel Air V3 Lux Alloy
• SeatpostTranzX YSI34 Dropper, 34.9mm, 150mm (S), 170mm (M), 200mm (L, XL, XXL)
• Front TireContinental Kryptotal Trail 2.4", Folding
• Rear TireContinental Xynotal Trail 2.4", Folding
