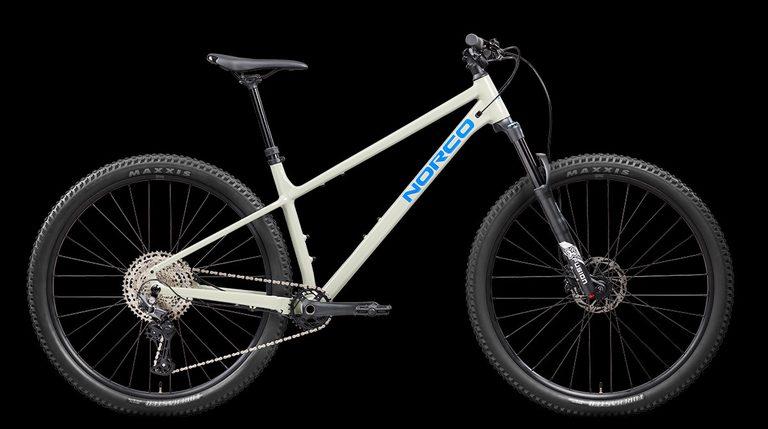

Norco Charger A2

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Aluminum

Wheel size

mixed"

Suspension

Hardtail

Rear axle spacing

148 mm

Seatpost diameter

31.60 mm

Headset standard

Tapered 1-1/8" - 1.5" (IS42/28.6 | IS52/40)

Max tire size

2.2" – 2.4"

Stock build

• ForkX-Fusion RC32 Air, 130mm, 15x110mm Boost
• Front BrakeShimano BR-MT200
• Rear BrakeShimano BR-MT200
• Front Brake RotorShimano SM-RT26, 160mm, 6-bolt
• Rear Brake RotorShimano SM-RT26, 160mm, 6-bolt
• Front Brake PadsResin Pads
• Rear Brake PadsResin Pads
• Brake LeversShimano BL-MT200
• Bottom BracketProWheel Cartridge
• CassetteShimano Deore CS-M6200-12, 10-51T, 12sp
• ChainKMC 12spd
• CranksetProWheel Alloy, 30T, 170mm (S-M), 175mm (L - XXL)
• PedalsNylon Flat Pedal, Chromoly Axle
• Front WheelKT Sealed Bearing, 15x110mm Boost, 32h, 6-bolt
• Rear WheelKT 12x148mm Boost, MS, 32h, 6-bolt
• Rear DerailleurShimano Deore RD-M6200, SGS, 12spd
• ShiftersShimano Deore SL-M6200-R, 12spd
• HandlebarNorco Aluminum, 760mm (S), 780mm (M,L,XL, XXL) 30mm Rise
• StemNorco 40mm Length, 31.8 Clamp
• GripsNorco lock-On, 130mm length
• HeadsetSealed Cartridge Bearings, Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )
• SaddleNorco XC
• SeatpostX-Fusion Manic LC, 31.6mm, 130mm (S), 150mm (M), 170mm (L/XL/XXL)
• Front TireMaxxis Forekaster, 29x2.4 (M-XXL), 27.5x2.25 (S), Wire
• Rear TireMaxxis Forekaster, 29x2.4" (27.5X2.25"size S), Wire
