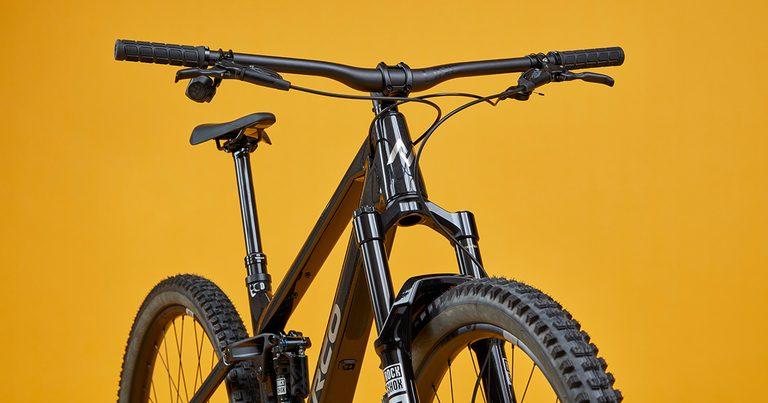

2024 Norco Fluid FS C3

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29"

Suspension

Full

Rear travel

130 mm

Rear axle spacing

148 mm

Seatpost diameter

34.90 mm

Bottom bracket

BSA Threaded

Max tire size

2.4" – 2.6"

Stock build

• ForkRockShox Pike Select, 140mm Travel, 44mm Offset
• Rear ShockRockShox Super Deluxe Select+ (210x50mm)
• Front BrakeSRAM DB8
• Rear BrakeSRAM DB8
• Front Brake RotorSRAM Centerline (200mm)
• Rear Brake RotorSRAM Centerline (180mm)
• Front Brake PadsSRAM DB8, Sintered Pads
• Rear Brake PadsSRAM DB8, Sintered Pads
• Brake LeversSRAM DB8
• Bottom BracketSRAM DUB BSA Threaded
• CassetteSRAM PG1210 Eagle 11-50T
• ChainSRAM SX Eagle, 12 speed
• CranksetSRAM SX Eagle DUB, 30T, 170mm (S), 175mm (M-XL)
• Front WheelBear Pawls 110x15mm Boost, 6-Bolt
• Rear WheelBear Pawls Rear 12x148 Boost, HG, 6-bolt, WTB ST 29in 32H, Sapim Sprint Butted
• Rear DerailleurSRAM NX Eagle, 12 speed
• ShiftersSRAM NX Eagle MMX
• HandlebarButted 6061 Alloy, 800mm, 25mm Rise
• StemNorco SL 6061 Alloy 40mm Length, 35mm Clamp
• GripsWTB Wavelength, 140mm Length
• HeadsetFSA #57 E Sealed Bearing, Tapered
• SaddleFizik Alpaca Terra, Wingflex
• SeatpostTranzX Tranz-X Dropper, 34.9mm, 150mm (S), 170mm (M), 200mm (L, XL)
• Front TireVittoria Mazza 2.4" Trail G2.0, Folding
• Rear TireVittoria Martello 2.35" Trail G2.0, Folding
