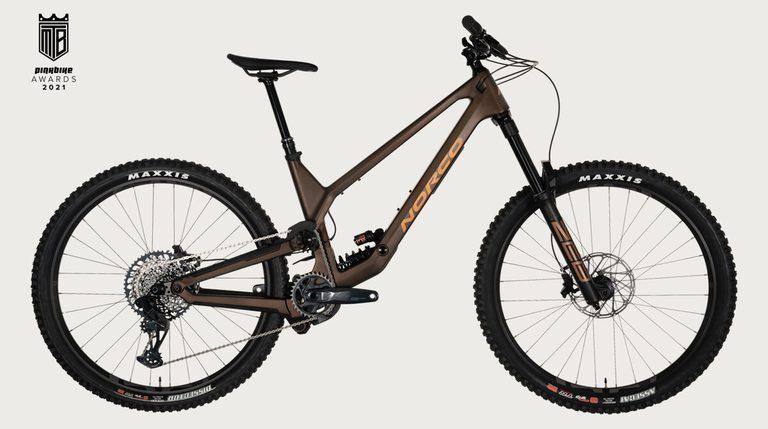

Norco Range C2

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29"

Suspension

Full

Rear travel

170 mm

Rear axle spacing

148 mm

Seatpost diameter

34.90 mm

Bottom bracket

PF92

Max tire size

2.35" – 2.5"

Stock build

• ForkRockShox ZEB Ultimate, Charger 3 RC2, Butter Cups, 170mm Travel, 44mm Offset
• Rear ShockFox DHX2 Factory Coil, HSC/LSC, HSR/LSR, Custom Tune, 205x62.5mm Trunnion, 400lb/in (S), 450lb/in (M), 500lb/in (L), 550lb/in (XL)
• Front BrakeSRAM Code R
• Rear BrakeSRAM Code R
• Front Brake RotorSRAM Centerline (200mm)
• Rear Brake RotorSRAM Centerline (200mm)
• Front Brake Padsmetallic pads
• Rear Brake Padsmetallic pads
• Bottom BracketSRAM BB DUB PF92
• CassetteSRAM Eagle XG 1275, 10-52T
• ChainSRAM Eagle
• CranksetSRAM GX Eagle, DUB, 32T, 170mm
• Front WheelRace Face Trace, 15x110mm Boost, 6 Bolt
• Rear WheelRace Face Trace, 12x148mm Boost, XD, 6 Bolt
• Rear DerailleurSRAM GX Eagle
• ShiftersSRAM GX Eagle
• HandlebarDeity Ridgeline, 800mm, 25mm Rise
• StemNorco Alloy, 40mm Length, 35mm Clamp
• GripsDMR DeathGrip Soft, Thin (S, M), Thick (L, XL)
• HeadsetFSA #57E Internal Sealed Bearing
• SaddleErgon SM10 Enduro
• SeatpostTranzX YSP-105 Adjustable Dropper, 34.9mm, 150mm (S), 170mm (M). 200mm (L, XL)
• Front TireMaxxis Assegai 2.5", DD, 3C MaxxGrip, TR
• Rear TireMaxxis Minion DHRII 2.4", WT, EXO+, 3C MaxxGrip, TR
