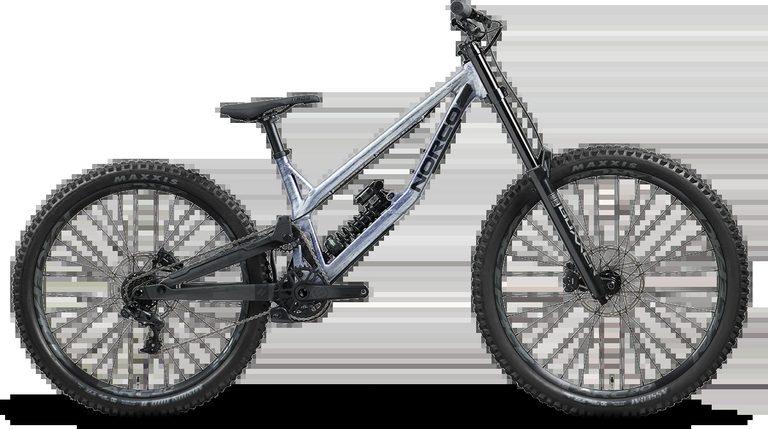

2027 Norco Team DH 2 RockShox

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29/27.5"

Suspension

Full

Rear travel

200 mm

Rear axle spacing

148 mm

Seatpost diameter

31.60 mm

Headset standard

IS42/28.6 IS42/30

Bottom bracket

BSA DH, 83mm

Max tire size

2.35" – 2.5"

Stock build

• ForkRockShox BoXXer Select D2, 200mm Travel, 52mm Offset
• Rear ShockRockShox Vivid Coil Base, 250x75mm Std eyelet, Sprindex Spring 330-380lb (S1), 380-440lb (S2), 440-490lb (S3), 490-560lb (S4), 520-600lb (S5)
• Front BrakeSRAM Maven
• Rear BrakeSRAM Maven
• Front Brake RotorSRAM Centerline A2, 200mm, 2mm thickness, 6-bolt
• Rear Brake RotorSRAM Centerline A2, 200mm, 2mm thickness, 6-bolt
• Front Brake Padsmetallic pads
• Rear Brake Padsmetallic pads
• Bottom BracketPraxis BSA DH, 83mm
• CassetteSRAM CS PG-720 DH, 11-25T, 7 sp
• ChainSRAM PC-1110, 11sp
• CranksetPraxis DH9, 36T, 57.5CL, 160mm (S1,S2)-165mm (S3,S4,S5)
• Front WheelNovatec Novatech Sealed Bearing, 20x110mm Boost, 6-Bolt
• Rear WheelDT Swiss 370, 12x148mm Boost, HG, 32h, 6-bolt
• Rear DerailleurSRAM GX DH, Mid Cage
• ShiftersSRAM GX DH
• HandlebarRace Face Atlas Aluminum, 800mm, 20mm Rise (S1,S2) / 40mm Rise (S3,S4,S5)
• StemRace Face Chester Direct Mount, 50mm
• GripsRace Face Chester, 31mm
• HeadsetFSA No. 8/50 ZS, Sealed Bearing, Straight 1-1/8", ( IS42/28.6 IS42/30 )
• SaddleSDG Patriot I-Beam
• SeatpostNorco Alloy, 31.6mm, Rigid
• Front TireMaxxis [F] Maxxis Assegai 29x2.5 WT, 3C MaxxGrip, DH, TR
• Rear TireMaxxis Minion DHR II, 3C Maxx Grip DD, 27.5.5x2.4", Folding
