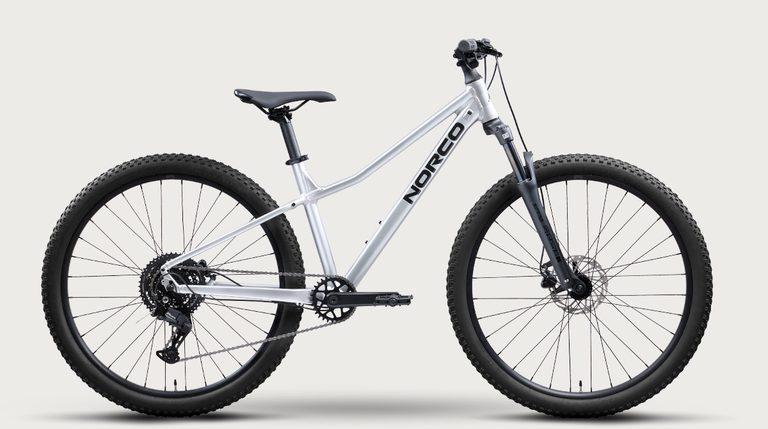

2027 Norco Storm 3

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Aluminum

Wheel size

mixed"

Suspension

Hardtail

Rear axle spacing

135 mm

Seatpost diameter

31.60 mm

Headset standard

ZS44/28.6 | ZS44/30 1 1/8"

Bottom bracket

ST 73mm

Max tire size

2.0" - 2.35"

Stock build

• ForkSR Suntour XCT30 Coil, 100mm, 46mm offset, QR
• Front BrakeShimano BR-MT200
• Rear BrakeShimano BR-MT200
• Front Brake RotorShimano SM-RT26, 160mm, 6-Bolt
• Rear Brake RotorShimano SM-RT26, 160mm, 6-Bolt
• Front Brake PadsShimano BR-MT200, Resin pads
• Rear Brake PadsShimano BR-MT200, Resin pads
• Brake LeversShimano BL-MT200
• Bottom BracketCartridge, ST 73mm, 113mm axle length
• CassetteShimano ESSA CS-HG300-8, 11-45T, 8sp
• ChainKMC Z8
• CranksetProWheel Alloy, 30T, 170mm (S-M), 175mm (L - XXL)
• PedalsVP Nylon Flat Pedal
• Front WheelFormula DC-1420 Front, 9x100 QR, 6-bolt, Alloy XD-155 32H, 27.5in (S) / 29in (M-XXL)
• Rear WheelFormula DC-27A Rear, 10x135 QR, HG, 6-bolt, Alloy XD-155 32H, 27.5in (S) / 29in (M-XXL)
• Rear DerailleurShimano Essa RD-U2000, GS, 8sp
• ShiftersShimano Altus M315, 8sp
• HandlebarNorco Aluminum, 740mm (S-M) 760mm (L-XXL), 20mm Rise
• StemNorco 40mm Length, 31.8 Clamp
• GripsNorco lock-On, 130mm length
• HeadsetZero Stack, 1-1/8" Steer, ZS44/28.6 | ZS44/30 1 1/8"
• SaddleNorco XC
• SeatpostAlloy 31.6mm, 300mm (S), 400mm (M/L/XL/XXL) length
• Front TireCY Trail, 29x2.25" (M-XXL) 27.5"x2.25 (S), Wire
• Rear TireCY Trail, 29x2.25" (M-XXL) 27.5"x2.25 (S), Wire
