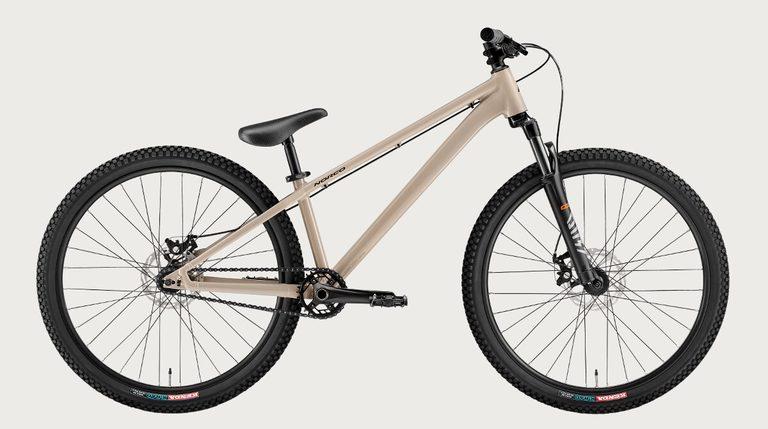

2025 Norco Rampage 2

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Aluminum

Wheel size

26"

Suspension

Hardtail

Headset standard

ZS44/28.6 | ZS56/40

Bottom bracket

ISIS 73mm

Max tire size

2.35" – 2.5"

Stock build

• ForkRST Dirt ,100 mm, 9x100mm
• Front BrakeTektro MD-280, Mechanical, Resin pads (not pictured)
• Rear BrakeTektro MD-280, Mechanical, Resin pads (not pictured)
• Front Brake RotorTR 160-24, 160mm , 6 bolt
• Rear Brake RotorTR 160-24, 160mm , 6 bolt
• Front Brake PadsResin Pads
• Rear Brake PadsResin Pads
• Brake LeversTektro Alloy
• Bottom BracketSealed Cartridge, ISIS 73mm
• CassetteSingle speed, 14T
• ChainKMC Z1, 1/2 x 3/32"
• CranksetProWheel Forged 3pc, 30T, 165mm
• PedalsFP 870ZP resin BMX flat pedal with metal pins
• Front WheelKT Front Sealed Bearing, 3/8in Nutted, 6-bolt, XD-115 DW 26in 32H, Stainless 14g
• Rear WheelKT Rear Sealed Bearing, 3/8in Nutted, 14T Single Speed, 6-bolt, XD-115 DW 26in 32H, Stainless 14g
• HandlebarNorco Alloy, 760mm, 30mm rise
• StemNorco 45mm Length, 31.8 Clamp
• GripsNorco w/small flange, 130mm length
• HeadsetTapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40)
• SaddleNorco One Piece
• SeatpostIntegrated w/saddle, 27.2mm ID, 200mm Length
• Front TireKenda K-Rad, 26x2.30", Wire Bead
• Rear TireKenda K-Rad, 26x2.30", Wire Bead
