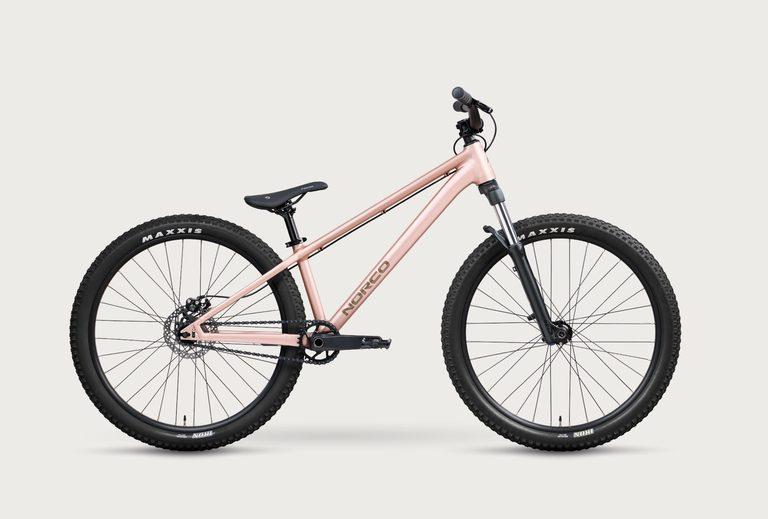

2027 Norco Rampage 1

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Aluminum

Wheel size

26"

Suspension

Hardtail

Headset standard

Tapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40)

Bottom bracket

ISIS 73mm

Max tire size

2.35" – 2.5"

Stock build

• ForkManitou Circus Comp, 100mm, 20x110mm
• Front BrakeTektro MD-M280, Mechanical Disc, Resin Pads
• Rear BrakeShimano BR-R317
• Front Brake RotorTektro TR160-52, 160mm, 1.8mm Thickness , 6-bolt
• Rear Brake RotorShimano SM-RT26, 160mm, 6-Bolt
• Front Brake PadsResin Pads
• Rear Brake PadsResin Pads
• Brake LeversTektro Alloy
• Bottom BracketSealed Cartridge, ISIS 73mm
• CassetteSingle speed, 14T
• ChainKMC Z1, 1/2 x 3/32"
• CranksetProWheel Forged Alloy 2Pc, 30T, 165mm
• PedalsFM Resin BMX w/ Metal Pins
• Front WheelKT sealed bearing, 20x110, 32H, 6-Bolt
• Rear WheelKT sealed bearing, 3/8" nutted axle, 32H, 14T SS sproket, 6 bolt
• HandlebarRace Face Atlas, 800mm, 55mm Rise
• StemNorco CNC Alloy, 35mm Length, 35mm Clamp
• GripsNorco w/small flange, 130mm length
• HeadsetTapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40)
• SaddleSDG Patriot I-Beam
• SeatpostAlloy, 27.2mm ID, 200mm Length
• Front TireMaxxis Ikon, 3C Maxx Speed, 26"x 2.35, Folding
• Rear TireMaxxis Ikon, 3C Maxx Speed, 26"x 2.35, Folding
