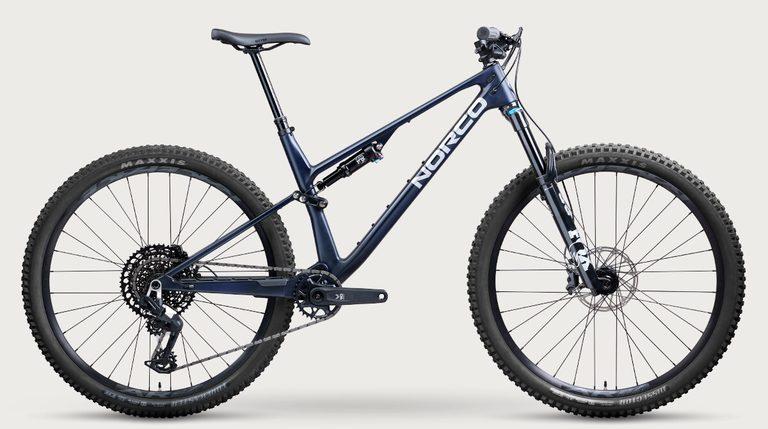

Norco Revolver LT C2 Gen 4

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29"

Suspension

Full

Rear travel

120 mm

Rear axle spacing

148 mm

Seatpost diameter

31.60 mm

Headset standard

IS42/28.6 | IS52/40

Bottom bracket

BSA 73mm

Max tire size

2.35" – 2.5"

Stock build

• ForkFox 36 SL Performance GRIP X 130mm, 29" , 1 1/8" x 1.5" Alloy, 110mmx15mm, Post Mount
• Rear ShockFox Float SL Performance (190x45mm)
• Front BrakeSRAM Motive Silver
• Rear BrakeSRAM Motive Silver
• Front Brake RotorSRAM HS2, 6-bolt, 180mm
• Rear Brake RotorSRAM HS2, 6-bolt, 180mm
• Front Brake PadsSRAM Motive Silver, Metallic Pads
• Rear Brake PadsSRAM Motive Silver, Metallic Pads
• Brake LeversSRAM Motive Silver
• Bottom BracketSRAM DUB MTB Wide, 73mm, BSA threaded
• CassetteSRAM 1275 Eagle T-Type, 10-52T, 12sp
• ChainSRAM Eagle 70 T-Type, 12spd
• CranksetSRAM Eagle 90, 32T, CL55, 165mm (S1,S2) -170mm (S3,S4,S5)
• Front WheelDT Swiss 370, 15x110mm Boost, 32H, 6-bolt
• Rear WheelDT Swiss 370 Rear, 12x148 Boost, XD, 6-bolt, Race Face AR 6061 Alloy 29in i27 32H
• Rear DerailleurSRAM Eagle 90 T-Type
• ShiftersSRAM Eagle 90, 12sp
• HandlebarNorco 6061, 760mm (S1,S2,S3) 780mm (S4,S5), 20mm Rise
• Stem6061 Alloy 50mm Length, 35mm Clamp
• GripsPeaty's Monarch, Mushroom, Thin
• HeadsetFSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )
• SaddleWTB Silverado Fusion CrMo 142
• SeatpostOneUp V3 w/ One Up 1x lever, 31.6mm, 150mm (S1-S2) -180mm (S3) -210mm (S4) -240mm (S5)
• Front TireMaxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
• Rear TireMaxxis New Forekaster, 3C Maxx Terra EXO, 29x2.40"
