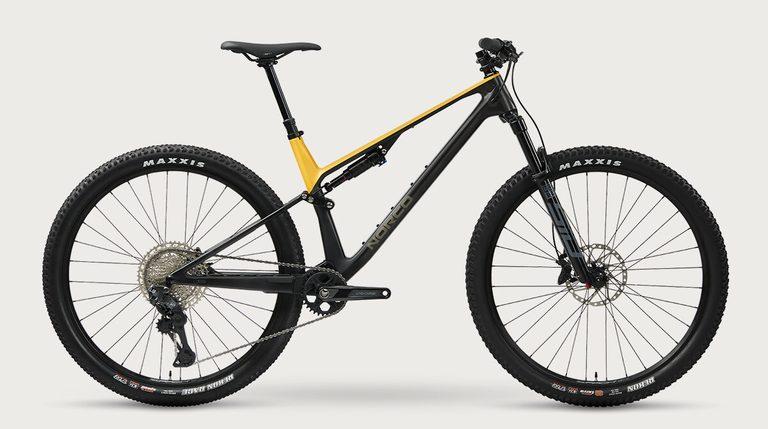

2026 Norco Revolver C2 120 Gen 4

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29"

Suspension

Full

Rear travel

115 mm

Rear axle spacing

148 mm

Seatpost diameter

31.60 mm

Headset standard

Tapered 1-1/8" - 1.5"

Bottom bracket

BSA 73mm

Max tire size

2.5"

Stock build

• ForkRockShox Sid Select 3P, 120mm, 44mm offset
• Rear ShockRockShox SIDLuxe Select+, 190x42.5mm, standard
• Front BrakeShimano BR-MT520
• Rear BrakeShimano BR-MT520
• Front Brake RotorShimano RT-64, 180mm rotor, C-Lock
• Rear Brake RotorShimano SM-RT64, 160mm, Center Lock
• Front Brake Padsmetallic pads
• Rear Brake Padsmetallic pads
• Brake LeversShimano Deore MT501
• Bottom BracketShimano BB-MT501, BSA 73mm
• CassetteShimano Deore CS-M6100-12, 10-51T, 12sp
• ChainShimano Deore CN-M6100
• CranksetShimano Deore FC-M6120, 32T, CL55, 165mm (S1), 170mm (S2,S3), 175mm (S4,S5)
• Front WheelShimano Deore HB-TC500, 15x110mm Boost, 32H, C-lock
• Rear WheelShimano FH-TC500 Rear, 12x148 Boost, Micro Spline, Center Lock, Stans Arch D 29in i28 32H, Stainless Steel
• Rear DerailleurShimano Deore XT Di2 RD-M8250, SGS, 12sp
• ShiftersShimano Deore XT Di2 SW-M8250-IR, 12sp
• HandlebarNorco 6061, 760mm (S1,S2,S3) 780mm (S4,S5), 20mm Rise
• StemNorco 6061, 50mm, 35mm Clamp
• GripsWTB Wavelength, 140mm Length
• HeadsetFSA No 42/48ACB Integrated Headset, Tapered 1-1/8" - 1.5"
• SaddleWTB Silverado Fusion CrMo 142
• SeatpostTranzX YSI36, 31.6mm, 120mm (S1, S2) -150mm (S3) -170mm (S4) - 200mm (S5)
• Front TireMaxxis Rekon EXO, 3C MaxxTerra EXO, 29x2.4"
• Rear TireMaxxis Rekon Race, 3C Maxx Speed EXO 29x2.4"
