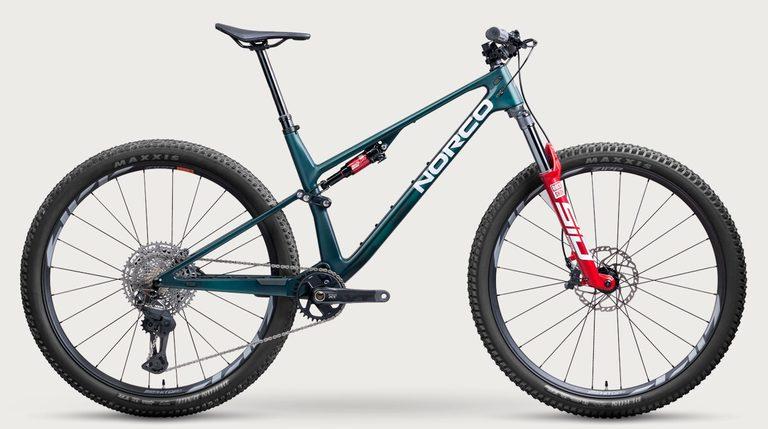

Norco Revolver C1 Gen 4

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29"

Suspension

Full

Rear travel

115 mm

Max tire size

2.35" – 2.5"

Stock build

• ForkRockShox Sid Ultimate 3P, 120mm, 44mm offset
• Rear ShockRockShox SIDLuxe Ultimate, 190x42.5mm, Std eyelet
• Front BrakeShimano Deore XT BR-M8220
• Rear BrakeShimano Deore XT BR-M8220
• Front Brake RotorShimano SM-RT66, 180mm, 6-bolt
• Rear Brake RotorShimano SM-RT66, 160mm, 6-bolt
• Front Brake Padsmetallic pads
• Rear Brake Padsmetallic pads
• Brake LeversShimano XT BL-M8200
• Bottom BracketShimano BB-MT501, BSA 73mm
• CassetteShimano XTR CS-M900-12, 10-51T, 12sp
• ChainShimano XTR CN-M9100
• CranksetShimano Deore XT FC-M8200, 34T, CL55, 165mm (S1,S2), 170mm (S3,S4,S5)
• Front WheelZipp 1Zero Hitop S, 15x110mm Boost, 6-bolt
• Rear WheelZipp 1Zero Hitop S, 12x148mm Boost, Microspline, 6-bolt
• Rear DerailleurShimano XTR Di2 RD-M9250 SGS
• ShiftersShimano XTR SW-M9250-IR, I-spec
• HandlebarRace Face ERA35, 760mm (S1,S2,S3) / 780 (S4,S5), 20mm Rise
• StemNorco CNC Alloy, 50mm Length, 35mm Clamp
• GripsPeaty's Monarch, Mushroom, Thin
• HeadsetFSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )
• SaddleFizik Ridon
• SeatpostOneUp V3 w/ One Up 1x lever, 31.6mm, 150mm (S1-S2) -180mm (S3) -210mm (S4) -240mm (S5)
• Front TireMaxxis Rekon EXO, 3C MaxxTerra EXO, 29x2.4"
• Rear TireMaxxis Rekon Race 29" x 2.4" TR, EXO, 120 TPI
