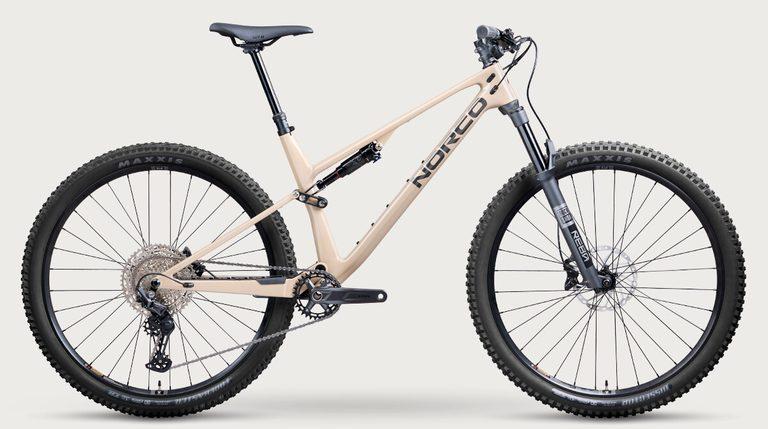

Norco Revolver LT C3 Gen 4

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29"

Suspension

Full

Rear travel

120 mm

Rear axle spacing

148 mm

Seatpost diameter

31.60 mm

Headset standard

IS42/28.6 | IS52/40

Bottom bracket

BSA 73mm

Max tire size

2.35" – 2.5"

Stock build

• ForkRockShox Reba RL, Motion Control, 130mm, 44mm offset,
• Rear ShockRockShox SID LUX Select +, 190x45mm, standard
• Front BrakeShimano BR-MT420
• Rear BrakeShimano BR-MT420
• Front Brake RotorShimano SM-RT54, 180mm, C-lock
• Rear Brake RotorShimano SM-RT54, 180mm, C-lock
• Front Brake PadsResin Pads
• Rear Brake PadsResin Pads
• Brake LeversShimano BL-MT401
• Bottom BracketShimano BB-MT501, BSA 73mm
• CassetteShimano Deore CS-M6200-12, 10-51T, 12sp
• ChainShimano Deore CN-M6100
• CranksetShimano FC-MT520, 32T, CL55, 165mm (S1,S2), 170mm (S3,S4,S5)
• Front WheelShimano HB-TC500-15-B,15x110mm Boost, 32H, C-lock
• Rear WheelShimano FH-TC500-MS-B, 12x148mm Boost, Micro Spline, 32H, C-lock
• Rear DerailleurShimano Deore RD-M6200, SGS, 12spd
• ShiftersShimano Deore SL-M6200-IR, I-Spec EV, 12spd
• HandlebarNorco 6061, 760mm (S1,S2,S3) 780mm (S4,S5), 20mm Rise
• StemNorco 6061, 40mm Length, 35mm Clamp
• GripsNorco Lock On, 130 length
• HeadsetFSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )
• SaddleWTB Silverado Fusion CrMo 142
• SeatpostTranzX YSI36 RAD+, 31.6mm, 150mm (S1, S2) -170mm (S3) -200mm (S4) - 230mm (S5)
• Front TireMaxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
• Rear TireMaxxis New Forekaster, 3C Maxx Terra EXO, 29x2.40"
