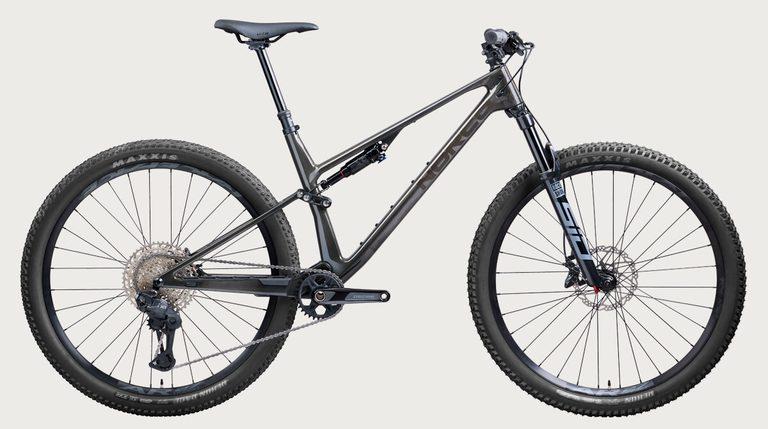

Norco Revolver C2 Gen 4

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29"

Suspension

Full

Rear travel

115 mm

Rear axle spacing

148 mm

Seatpost diameter

31.60 mm

Headset standard

IS42/28.6 | IS52/40

Bottom bracket

BSA 73mm

Max tire size

2.35" – 2.5"

Stock build

• ForkRockShox SID Select Charger RL, 120mm, 44mm offset
• Rear ShockRockShox SIDLUX Select +, 190x42.5mm, Std eyelet
• Front BrakeShimano BR-MT520
• Rear BrakeShimano BR-MT520
• Front Brake RotorShimano RT-64, 180mm rotor, C-Lock
• Rear Brake RotorShimano SM-RT64, 160mm, Center Lock
• Front Brake PadsShimano BR-MT520, 4 piston, Metallic Pads
• Rear Brake PadsShimano BR-MT520, 4 piston, Metallic Pads
• Brake LeversShimano MT501 hydraulic disc
• Bottom BracketShimano BB-MT501, BSA 73mm
• CassetteShimano Deore CS-M6100-12, 10-51T, 12sp
• ChainShimano Deore CN-M6100
• CranksetShimano Deore FC-M6120, 32T, CL55, 165mm (S1,S2), 170mm (S3,S4,S5)
• Front WheelShimano HB-TC500-15-B Front, 15x110 Boost, Center Lock, Race Face AR 6061 Alloy 29in i27 32H
• Rear WheelShimano FH-TC500-MS-B, 12x148mm Boost, Micro Spline, 32H, C-lock
• Rear DerailleurShimano Deore XT Di2 RD-M8250, SGS, 12sp
• ShiftersShimano Deore XT Di2 SW-M8250-IR, 12sp
• HandlebarNorco 6061, 760mm (S1,S2,S3) 780mm (S4,S5), 20mm Rise
• Stem6061 Alloy 50mm Length, 35mm Clamp
• GripsPeaty's Monarch, Mushroom, Thin
• HeadsetFSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )
• SaddleWTB Silverado Fusion CrMo 142
• SeatpostTranzX YSI36 RAD+, 31.6mm, 150mm (S1, S2) -170mm (S3) -200mm (S4) - 230mm (S5)
• Front TireMaxxis Rekon EXO, 3C MaxxTerra EXO, 29x2.4"
• Rear TireMaxxis Rekon Race 29" x 2.4" TR, EXO, 120 TPI
