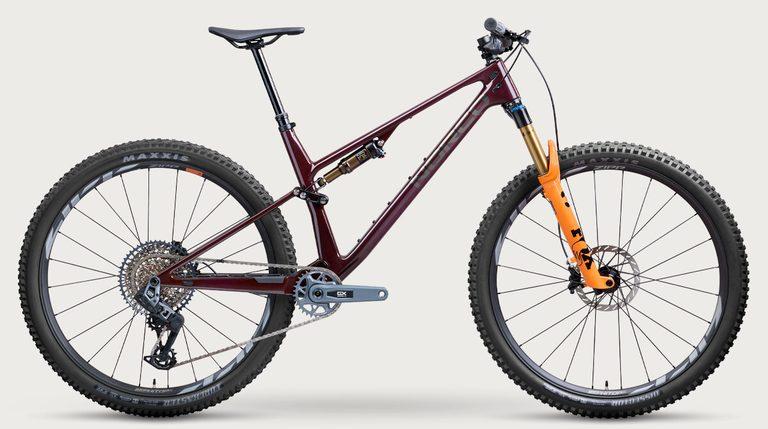

Norco Revolver LT C1 Gen 4

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29"

Suspension

Full

Rear travel

120 mm

Rear axle spacing

148 mm

Seatpost diameter

31.60 mm

Headset standard

IS42/28.6 | IS52/40

Bottom bracket

BSA 73mm, MTB WIDE

Max tire size

2.35" – 2.5"

Stock build

• ForkFox 36 SL Factory GRIP X 130mm, 29" , 1 1/8" x 1.5" Alloy, 110mmx15mm, Post Mount
• Rear ShockFox Factory Float SL, 190x45mm, Std eyelet
• Front BrakeSRAM Motive Silver
• Rear BrakeSRAM Motive Silver
• Front Brake RotorSRAM HS2 180mm, 2mm thickness, 6 bolt
• Rear Brake RotorSRAM HS2 180mm, 2mm thickness, 6 bolt
• Front Brake Padsmetallic pads
• Rear Brake Padsmetallic pads
• Brake LeversSRAM Motive Silver
• Bottom BracketSRAM DUB MTB Wide, 73mm, BSA threaded
• CassetteSRAM 1275 Eagle T-Type, 10-52T, 12sp
• ChainSRAM GX Eagle T-Type Flat Top Chain
• CranksetSRAM GX Eagle, 32T, CL55, 165mm (S1,S2), 170mm (S3,S4,S5)
• Front WheelSRAM ZM 900 SL, 15x110mm Boost, 6-bolt
• Rear WheelSRAM ZM 900 SL, 12x148mm Boost, XD, 32H, 6-bolt
• Rear DerailleurSRAM GX Eagle AXS T-Type, 12spd
• ShiftersSRAM AXS Pod Controller, Discrete Clamp
• HandlebarRace Face ERA35, 760mm (S1,S2,S3) / 780 (S4,S5), 20mm Rise
• StemNorco CNC Alloy, 50mm Length, 35mm Clamp
• GripsPeaty's Monarch, Mushroom, Thin
• HeadsetFSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )
• SaddleFizik Ridon
• SeatpostOneUp V3 w/ One Up 1x lever, 31.6mm, 150mm (S1-S2) -180mm (S3) -210mm (S4) -240mm (S5)
• Front TireMaxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
• Rear TireMaxxis New Forekaster, 3C Maxx Terra EXO, 29x2.40"
