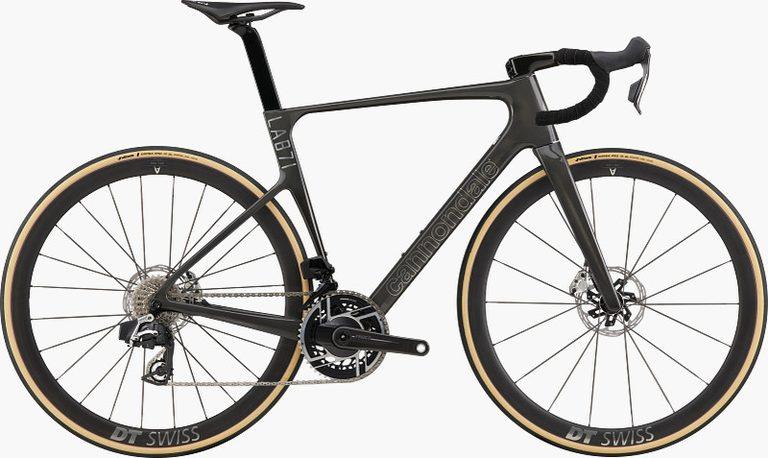

2026 Cannondale SuperSix EVO LAB71 SL Gen 5

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

700c"

Rear axle spacing

142 mm

Headset standard

Integrated, 1-1/8" - 1-1/4"

Bottom bracket

BSA 68mm threaded BB

Max tire size

32mm

Stock build

• ForkCannondale LAB71 SuperSix EVO, Gen 5, Ultralight Series 0 Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset
• Front BrakeSRAM RED AXS, Paceline X 160/160mm rotors
• Rear BrakeSRAM RED AXS, Paceline X 160/160mm rotors
• Front Brake RotorSRAM Paceline X, rounded, centerlock, 160mm
• Rear Brake RotorSRAM Paceline X, rounded, centerlock, 160mm
• Brake LeversSRAM RED AXS hydraulic disc
• Bottom BracketCeramicSpeed Ceramic Speed BB Alpha, BSA DUB
• CassetteSRAM RED XG-1290, 10-30, 12-speed
• ChainSRAM RED, 12-speed
• CranksetSRAM RED AXS Power Meter, 48/35: 165mm (44-50cm), 170mm (52-56cm), 172.5 (58-61cm)
• Front WheelDT Swiss 180 DiCut, SINC ceramic bearings, centerlock, straight pull - (F) 12x100mm, (R) 12x142mm, Ratchet EXP 36
• Rear WheelDT Swiss 180 DiCut, SINC ceramic bearings, centerlock, straight pull - (F) 12x100mm, (R) 12x142mm, Ratchet EXP 36
• Front DerailleurSRAM RED AXS
• Rear DerailleurSRAM RED AXS, 12-speed
• ShiftersSRAM RED AXS, 13-speed
• HandlebarCannondale SystemBar Road SL, ultralight, full carbon integrated bar/stem: 90x380mm (44-52cm), 100x380mm (54-56cm), 110x380mm (58cm), 110x400mm (61cm)
• StemCannondale SystemBar Road SL, ultralight, full carbon integrated bar/stem
• GripsFizik Tempo Bondcush Soft, 3mm
• SaddleFizik Vento Antares 00, carbon shell and rails, 140mm
• SeatpostCannondale C1 Aero 40 Carbon, 0mm offset (44-48cm), 20mm offset (51-61cm)
• Front TireVittoria Corsa Pro, 700x28c Tube Type, TPU tube optimized
• Rear TireVittoria Corsa Pro, 700x28c Tube Type, TPU tube optimized
