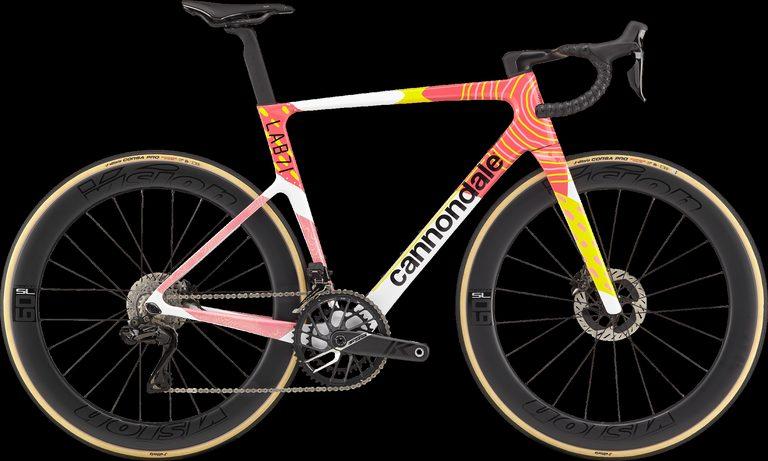

2024 Cannondale SuperSix EVO LAB71 Team

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

700c"

Rear axle spacing

142 mm

Headset standard

Integrated, 1-1/8" - 1-1/4"

Bottom bracket

BSA 68mm threaded BB

Max tire size

30mm

Stock build

• ForkCannondale LAB71 SuperSix EVO, Ultralight Series 0 Carbon, integrated crown race, 12x100mm Syntace thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset
• Front BrakeShimano Dura-Ace BR-R9270
• Rear BrakeShimano Dura-Ace BR-R9270
• Front Brake RotorShimano Dura-Ace R9270 hydraulic disc, 160/140mm MT900 rotors
• Rear Brake RotorShimano Dura-Ace R9270 hydraulic disc, 160/140mm MT900 rotors
• Brake LeversShimano Dura-Ace Di2 R9270 hydraulic disc
• Bottom BracketFSA MegaEVO Ceramic BB386EVO, BSA threaded, 68mm shell
• CassetteShimano Dura-Ace CS-R9200-12 (11-30T)
• ChainShimano Dura-Ace, 12-speed
• CranksetFSA K-Force Team Edition carbon, BB386EVO, 52/36
• Front WheelVision PRS CL, 12x100mm centerlock
• Rear WheelVision PRS CL, 12x142mm centerlock, 72t Helical Clutch Ratchet
• Front DerailleurShimano Dura-Ace Di2 R9250
• Rear DerailleurShimano Dura-Ace Di2 R9250
• ShiftersShimano Dura-Ace Di2 R9270, wireless, 2x12
• HandlebarCannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing: 90x400mm (46-51cm), 100x420mm (54-56cm), 110x420mm (58cm), 120x420mm (61cm)
• StemCannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
• GripsPrologo One Touch
• HeadsetIntegrated, 1-1/8" - 1.5"
• SaddleFizik Vento Argo Adaptive 00, Carbon Rails
• SeatpostCannondale C1 Aero 40 Carbon, 0mm offset (44-48cm), 20mm offset (51-61cm)
• Front TireVittoria Corsa PRO TLR, 700x28, tubeless-ready
• Rear TireVittoria Corsa PRO TLR, 700x28, tubeless-ready
