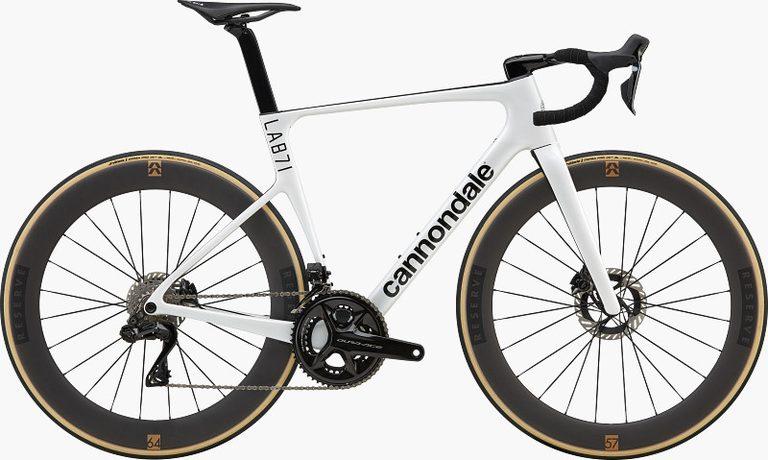

2026 Cannondale SuperSix EVO LAB71 Gen 5

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

700c"

Rear axle spacing

142 mm

Headset standard

Integrated, 1-1/8" - 1-1/4"

Bottom bracket

BSA 68mm threaded BB

Max tire size

32mm

Stock build

• ForkCannondale LAB71 SuperSix EVO, Gen 5, Ultralight Series 0 Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset
• Front BrakeShimano Dura-Ace BR-R9270
• Rear BrakeShimano Dura-Ace BR-R9270
• Front Brake RotorShimano Dura-Ace R9270 hydraulic disc, 160/140mm CL900 rotors
• Rear Brake RotorShimano Dura-Ace R9270 hydraulic disc, 160/140mm CL900 rotors
• Brake LeversShimano Dura-Ace Di2 R9270 hydraulic disc
• Bottom BracketCeramicSpeed Ceramic Speed BB Alpha, BSA DUB
• CassetteShimano Dura-Ace R9200, 11-30, 12-speed
• ChainShimano Dura-Ace, 12-speed
• CranksetShimano Dura-Ace R9200, 52/36, 4iiii PRECISION 3+ PRO Power Meter: 165mm (44-50cm), 170mm (52-56cm), 172.5 (58-61cm)
• Front WheelDT Swiss 180 DiCut, SINC ceramic bearings, centerlock, straight pull - (F) 12x100mm, (R) 12x142mm, Ratchet EXP 36
• Rear WheelDT Swiss 180 DiCut, SINC ceramic bearings, centerlock, straight pull - (F) 12x100mm, (R) 12x142mm, Ratchet EXP 36
• Front DerailleurShimano Dura-Ace Di2 R9250
• Rear DerailleurShimano Dura-Ace Di2 R9250, 12-speed
• ShiftersShimano Dura-Ace Di2 R9270, wireless, 2x12-speed
• HandlebarCannondale SystemBar Road, ultra low drag, full carbon integrated bar/stem: 90x340mm (44-52cm), 100x360mm (54-56cm), 110x380mm (58-61cm)
• StemCannondale SystemBar Road, ultra low drag, full carbon integrated bar/stem
• GripsFizik Tempo Bondcush Soft, 3mm
• HeadsetIntegrated, 1-1/8" - 1.5"
• SaddleFizik Vento Antares 00, carbon rail, 140mm
• SeatpostCannondale C1 Aero 40 Carbon V2, Ti Hardware, 365mm, 0mm offset (44-54cm), 15mm offset (56-61cm)
• Front TireVittoria Corsa PRO TLR, 700x29c, wide rim, tubeless ready
• Rear TireVittoria Corsa PRO TLR, 700x29c, wide rim, tubeless ready
