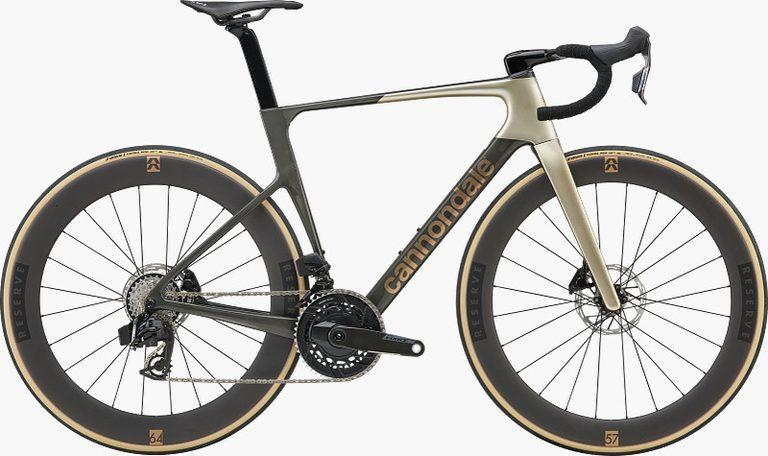

2026 Cannondale SuperSix EVO 1 Gen 5

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

700c"

Rear axle spacing

142 mm

Headset standard

Integrated, 1-1/8" - 1-1/4"

Bottom bracket

BSA 68mm threaded

Max tire size

32mm

Stock build

• ForkCannondale SuperSix EVO Hi-MOD Carbon, Gen 5, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
• Front BrakeSRAM Force AXS hydraulic disc, flat mount
• Rear BrakeSRAM Force AXS hydraulic disc, flat mount
• Front Brake RotorSRAM Paceline, Size 160 mm, Weight 139 g
• Rear Brake RotorSRAM Paceline, Size 160 mm, Weight 139 g
• Brake LeversSRAM Force AXS hydraulic disc
• Bottom BracketSRAM DUB BSA
• CassetteSRAM Force XG-1270, 10-33, 12-speed
• ChainSRAM Force, 12-Speed
• CranksetSRAM Force AXS Power Meter, 48/35: 165mm (44-50cm), 170mm (52-56cm), 172.5 (58-61cm)
• Front WheelDT Swiss 240, centerlock, straight pull - (F) 12x100mm, (R) 12x142mm, Ratchet EXP 36
• Rear WheelDT Swiss 240, centerlock, straight pull - (F) 12x100mm, (R) 12x142mm, Ratchet EXP 36
• Front DerailleurSRAM Force AXS
• Rear DerailleurSRAM Force AXS, 12-speed
• ShiftersSRAM Force AXS HRD
• HandlebarCannondale SystemBar Road, ultra low drag, full carbon integrated bar/stem: 90x340mm (44-52cm), 100x360mm (54-56cm), 110x380mm (58-61cm)
• StemCannondale SystemBar Road, ultra low drag, full carbon integrated bar/stem
• GripsFizik Tempo Bondcush Soft, 3mm
• HeadsetIntegrated, 1-1/8" - 1.5"
• SaddleFizik Vento Antares R1, carbon rails, 140mm
• SeatpostCannondale C1 Aero 40 Carbon V2, Ti Hardware, 365mm, 0mm offset (44-54cm), 15mm offset (56-61cm)
• Front TireVittoria Corsa Pro, 700x29c, wide rim, tubeless ready
• Rear TireVittoria Corsa Pro, 700x29c, wide rim, tubeless ready
