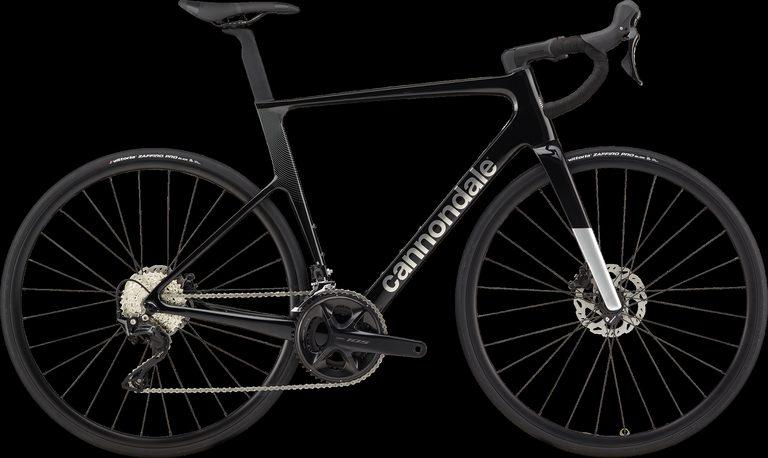

2023 Cannondale SuperSix EVO 4

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

700c"

Rear axle spacing

142 mm

Headset standard

Integrated, 1-1/8" - 1-1/4"

Bottom bracket

BSA 68mm threaded

Max tire size

30mm

Stock build

• ForkCannondale SuperSix EVO Carbon, integrated crown race, 12x100mm Syntace thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
• Front BrakeShimano 105 7170 hydraulic disc, 160/160 RT70 rotors
• Rear BrakeShimano 105 7170 hydraulic disc, 160/160 RT70 rotors
• Front Brake RotorShimano RT70, centerlock, 160mm
• Rear Brake RotorShimano RT70, centerlock, 160mm
• Brake LeversShimano 105 7100 hydraulic disc
• Bottom BracketShimano BB-RS500, BSA
• CassetteShimano 105 R7100, 11-36, 12-speed
• ChainShimano 105 7100, 12-speed
• CranksetShimano 105 7100, 12-speed, 50/34
• Front WheelFormula (F) Formula CL-712, 12x100mm centerlock
• Rear WheelFormula (R) Formula RXC-400, 12x142mm centerlock
• Front DerailleurShimano 105 7100, braze-on
• Rear DerailleurShimano 105 7100, 12-speed
• ShiftersShimano 105 7100, 12-speed
• HandlebarVision Trimax Compact
• StemCannondale C1 Conceal, Alloy, 31.8, -6°: 70mm (47-51m), 80mm (54cm), 90mm (56-58cm), 100mm (61cm)
• GripsCannondale Bar Tape, 3.5mm
• SaddlePrologo Nago RS STN, Stainless Steel Rails
• SeatpostCannondale C1 Aero 40 Carbon, 0mm offset (44-48cm), 20mm offset (51-61cm)
• Front TireVittoria Zaffiro Pro Slick, 700x25c
• Rear TireVittoria Zaffiro Pro Slick, 700x25c
