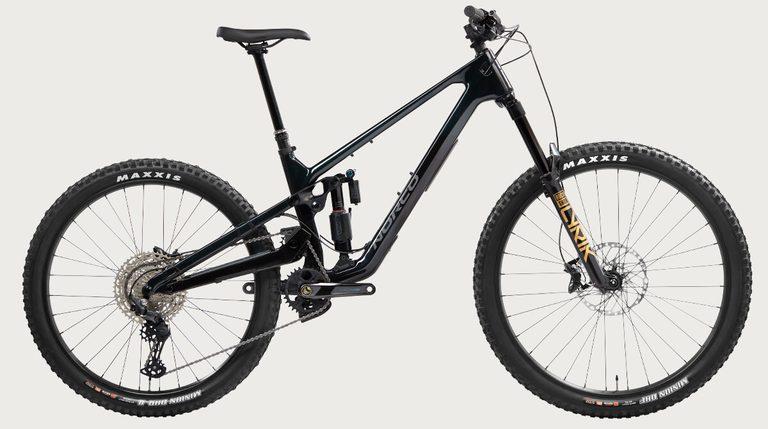

2024 Norco Sight C3 MX Gen 5

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29/27.5"

Suspension

Full

Rear travel

150 mm

Rear axle spacing

148 mm

Seatpost diameter

34.90 mm

Bottom bracket

BSA Threaded

Max tire size

2.35" – 2.6"

Stock build

• ForkRockShox Rock Shox Lyrik Select 160mm
• Rear ShockRockShox Vivid Select+ Air, 205x60mm Trunnion
• Front BrakeShimano BR-MT520
• Rear BrakeShimano BR-MT520
• Front Brake RotorShimano RT-64, 203mm, C-Lock
• Rear Brake RotorShimano RT-64, 180mm, C-Lock
• Front Brake Padsmetallic pads
• Rear Brake Padsmetallic pads
• Brake LeversShimano Deore MT-520
• Bottom BracketShimano Sealed Bearing BSA Threaded
• CassetteShimano Deore, 10x51
• ChainShimano Deore CN-M6100
• CranksetShimano Deore FC-MT6120-1, 32T, 170mm
• Front WheelShimano HB-TC500-15-B,15x110mm Boost, 32H, C-lock
• Rear WheelShimano FH-TC500-MS-B, 12x148mm Boost, Micro Spline, 32H, C-lock
• Rear DerailleurShimano Deore 11spd
• ShiftersShimano Deore 11spd
• HandlebarButted 6061 Alloy, 800mm, 25mm Rise
• StemNorco Alloy, 40mm Length, 35mm Clamp
• GripsWTB Waffle
• HeadsetFSA #57 E Sealed Bearing, Tapered
• SaddleWTB Volt 250 Sport
• SeatpostTranzX YS105, Adjustable Travel, 34.9mm, 150mm (S), 170mm (M), 200mm (L, XL)
• Front TireMaxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready
• Rear TireMaxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+
