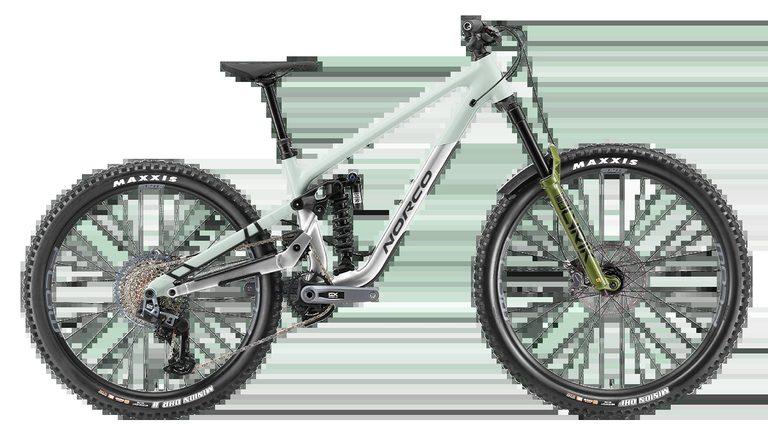

2024 Norco Sight A1 MX Gen 5

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Aluminum

Wheel size

29/27.5"

Suspension

Full

Rear travel

150 mm

Rear axle spacing

148 mm

Seatpost diameter

34.90 mm

Bottom bracket

BSA Threaded

Max tire size

2.35" – 2.6"

Stock build

• ForkRockShox Lyrik Ultimate (160mm)
• Rear ShockRockShox Super Deluxe Ultimate (205x60mm)
• Front BrakeSRAM Code Bronze Stealth
• Rear BrakeSRAM Code Bronze Stealth
• Front Brake RotorSRAM Centerline (200mm)
• Rear Brake RotorSRAM Centerline (180mm)
• Rear Brake Padssintered pads
• Brake LeversSRAM Code Bronze Stealth
• Bottom BracketSRAM DUB BSA
• CassetteSRAM Eagle T-Type 1275 10-52T
• ChainSRAM GX Eagle T-Type, Flattop, 12spd
• CranksetSRAM GX Eagle DUB T-Type Crankset, 32t All Sizes: 170mm
• Front WheelRace Face Vault 15x110mm Boost, 6-Bolt
• Rear WheelRace Face Vault 12x148mm Boost, XD, 6-Bolt
• Rear DerailleurSRAM GX Eagle AXS T-Type, 12spd
• ShiftersSRAM Pod Ultimate Controller
• Handlebar6061 Alloy, 800mm 25mm Rise
• StemNorco Alloy, 40mm Length, 35mm Clamp
• GripsWTB Wavelength Lock-On
• HeadsetFSA #57 E Sealed Bearing, Tapered
• SaddleSDG Bel Air V3 Lux Alloy
• SeatpostTranzX YS108 Dropper, 34.9mm, 150mm (1), 170mm (2), 200 (3, 4), 230mm (5)
• Front TireMaxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready
• Rear TireMaxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+
