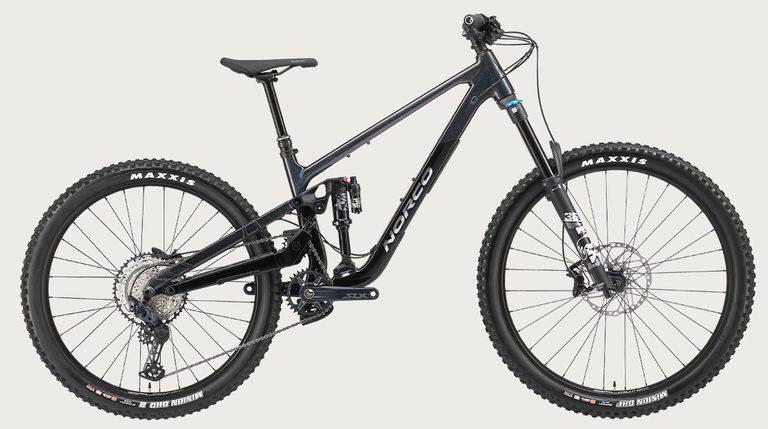

2024 Norco Sight A2 MX Gen 5

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Aluminum

Wheel size

29/27.5"

Suspension

Full

Rear travel

150 mm

Seatpost diameter

34.90 mm

Bottom bracket

BSA Threaded

Max tire size

2.35" - 2.6"

Stock build

• ForkFox FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset S1:150mm of travel, S2-S6:160mm of travel
• Rear ShockFox FLOAT X Performance, LSC LSR, 205x60mm Trunnion
• Front BrakeShimano BR-MT520
• Rear BrakeShimano BR-MT520
• Front Brake RotorShimano RT-64, 200mm
• Rear Brake RotorShimano RT-64, 180mm, C-Lock
• Front Brake Padsmetallic pads
• Rear Brake Padsmetallic pads
• Brake LeversShimano Deore MT-520
• Bottom BracketShimano Sealed Bearing BSA Threaded
• CassetteShimano SLX CS-M7100-12 (10-51T)
• ChainShimano Deore M6100
• CranksetShimano SLX HollowTech 2, FC-M7100, 34T, 32T on Size 1, 170mm
• Front WheelShimano SLX 15x110mm Boost, Center Lock
• Rear WheelShimano SLX FH-M7110, Micro Spline, Center Lock
• Rear DerailleurShimano SLX, M7100, SGS, 12-speed
• ShiftersShimano SLX, M7100, 12spd
• HandlebarButted 6061 Alloy, 800mm, 25mm Rise
• StemNorco Alloy, 40mm Length, 35mm Clamp
• GripsSDG THRICE
• HeadsetFSA #57 E Sealed Bearing, Tapered
• SaddleSDG Bel Air V3 Lux Alloy
• SeatpostTranzX YS105 Dropper, 34.9mm, 150mm (1), 170mm (2), 200 (3, 4), 230mm (5)
• Front TireMaxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready
• Rear TireMaxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+
