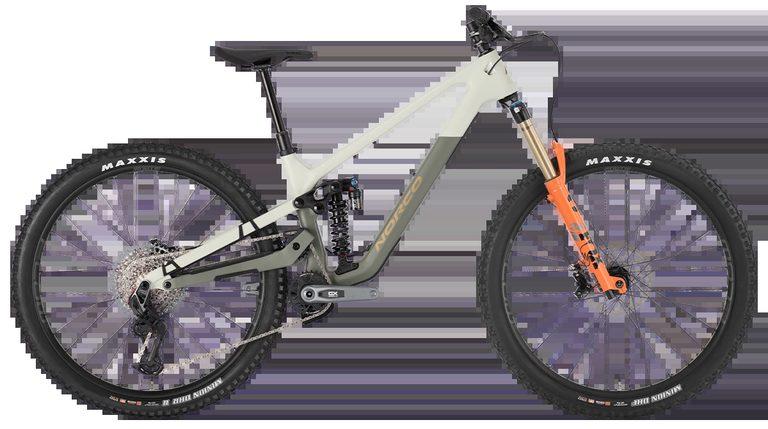

2024 Norco Sight C1 Gen 5

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29"

Suspension

Full

Rear travel

150 mm

Rear axle spacing

148 mm

Seatpost diameter

34.90 mm

Max tire size

2.35" – 2.6"

Stock build

• ForkFox Factory FLOAT 36, HSC / LSC / LSR, GRIP2, 160mm, 44mm Offset
• Rear ShockFox Factory DHX2 Coil, HSC/LSC, HSR/LSR 2 pos., 60x205mm Trunnion, Sprindex Spring
• Front BrakeSRAM Code Silver Stealth
• Rear BrakeSRAM Code Silver Stealth
• Front Brake RotorSRAM Centerline (200mm)
• Rear Brake RotorSRAM Centerline (180mm)
• Front Brake Padssintered pads
• Rear Brake Padssintered pads
• Brake LeversSRAM Code Silver Stealth 4-Piston
• Bottom BracketSRAM DUB BSA Threaded
• CassetteSRAM Eagle T-Type 1275 10-52T
• ChainSRAM GX Eagle T-Type, Flattop, 12spd
• CranksetSRAM GX Eagle T-Type 30T, 170mm
• Front WheelRace Face Vault 15x110mm Boost, 6-Bolt
• Rear WheelRace Face Vault 12x148mm Boost, XD, 6-Bolt
• Rear DerailleurSRAM GX Eagle AXS T-Type, 12spd
• ShiftersSRAM Pod Ultimate Controller
• HandlebarDeity Ridgeline, 800mm, 25mm Rise
• StemNorco Alloy, 40mm Length, 35mm Clamp
• GripsDMR DeathGrip
• HeadsetFSA #57 E Sealed Bearing, Tapered
• SaddleSDG Bel Air V3 Lux Alloy
• SeatpostOneUp One Up adjustable dropper, 34.9mm, 150mm (1), 180mm (2), 210mm (3, 4), 240mm (5)
• Front TireMaxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready
• Rear TireMaxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+
