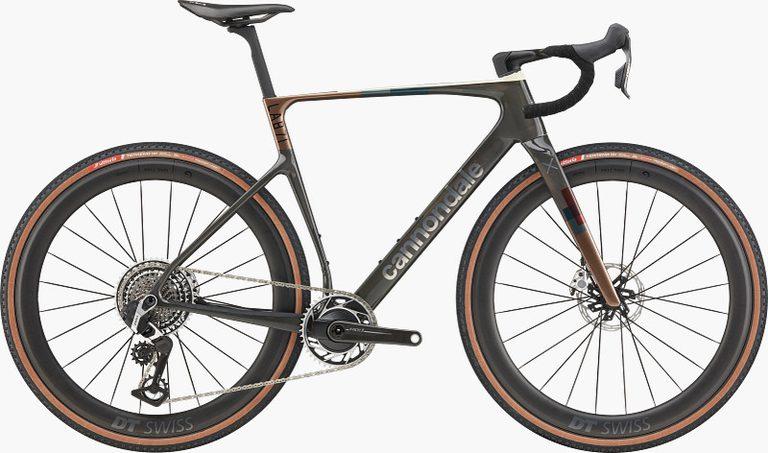

2026 Cannondale SuperX LAB71

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

700c"

Rear axle spacing

142 mm

Headset standard

Integrated, 1-1/8" - 1.5"

Bottom bracket

BSA 68mm threaded

Max tire size

48mm (frame), 51mm (fork)

Stock build

• ForkCannondale Lab71 SuperX, Series 0 carbon construction, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset
• StemCannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
• ChainSRAM RED, 13-speed
• GripsFizik Tempo Bondcush Soft, 3mm
• SaddleFizik Vento Antares 00, carbon rail, 140mm
• CassetteSRAM RED XPLR XG-1391, 10-46, 13-speed
• CranksetSRAM RED XPLR AXS Wide Power Meter, 42T: 165mm (46cm), 170mm (51-56cm), 172.5 (58cm), 175mm (61cm)
• SeatpostCannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 15mm offset (51-61cm)
• ShiftersSRAM RED AXS, 13-speed
• HandlebarCannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing: 90x400mm (46-51cm), 100x420mm (54-56cm), 110x420mm (58cm), 120x420mm (61cm)
• Rear TireVittoria Terreno T50, 700x40c
• Front TireVittoria Terreno T50, 700x40c
• Rear BrakeSRAM RED AXS, Paceline X 160/160mm rotors
• Rear WheelDT Swiss 180 DiCut, SINC ceramic bearings, centerlock, straight pull - (F) 12x100mm, (R) 12x142mm, Ratchet EXP 36
• Front BrakeSRAM RED AXS, Paceline X 160/160mm rotors
• Front WheelDT Swiss 180 DiCut, SINC ceramic bearings, centerlock, straight pull - (F) 12x100mm, (R) 12x142mm, Ratchet EXP 36
• Brake LeversSRAM RED AXS hydraulic disc
• Bottom BracketCeramicSpeed Ceramic Speed BB Alpha, BSA DUB
• Rear DerailleurSRAM RED XPLR AXS
• Rear Brake RotorSRAM Paceline X, rounded, centerlock, 160mm
• Front Brake RotorSRAM Paceline X, rounded, centerlock, 160mm
