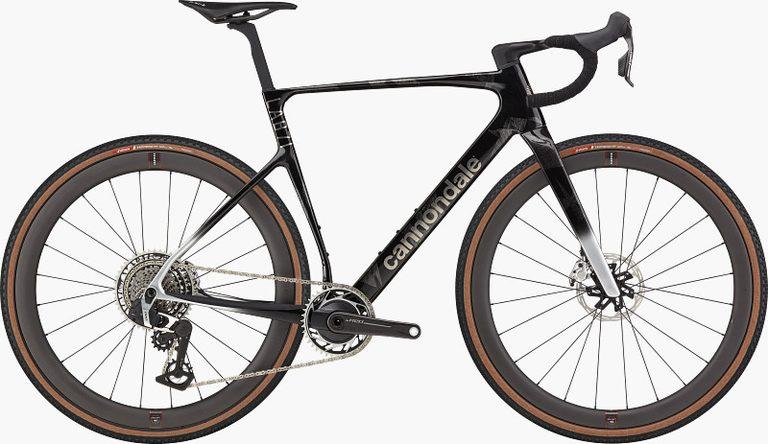

2025 Cannondale SuperX LAB71

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

700c"

Rear axle spacing

142 mm

Headset standard

Integrated, 1-1/8" - 1.5"

Bottom bracket

UDH BSA 68mm threaded

Max tire size

48mm frame / 51mm fork

Stock build

• ForkCannondale Lab71 SuperX, Series 0 carbon construction, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset
• StemCannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
• ChainSRAM RED, 13-speed
• GripsFizik Tempo Bondcush 3mm Soft
• SaddleFizik Vento Antares 00, carbon rail, 140mm
• HeadsetIntegrated, 1-1/8" - 1.5"
• CassetteSRAM RED XPLR, 10-46, 13-speed
• CranksetSRAM RED XPLR AXS Power Meter, 40T: 165mm (46cm), 170mm (51-54cm), 172.5 (58-58cm), 175mm (61cm)
• SeatpostCannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 15mm offset (51-61cm)
• ShiftersSRAM RED AXS, 13-speed
• HandlebarCannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing: 90x400mm (46-51cm), 100x420mm (54-56cm), 110x420mm (58cm), 120x420mm (61cm)
• Rear TireVittoria Terreno T50, 700x40c
• Front TireVittoria Terreno T50, 700x40c
• Rear BrakeSRAM RED AXS, Paceline X 160/160mm rotors
• Rear WheelDT Swiss 180, 12x142mm centerlock
• Front BrakeSRAM RED AXS, Paceline X 160/160mm rotors
• Front WheelDT Swiss 180, 12x100mm centerlock
• Brake LeversSRAM RED AXS hydraulic disc
• Bottom BracketCeramicSpeed DUB BSA
• Rear DerailleurSRAM RED XPLR AXS
• Rear Brake RotorSRAM Paceline X, rounded, centerlock, 160mm
• Front Brake RotorSRAM Paceline X, rounded, centerlock, 160mm
