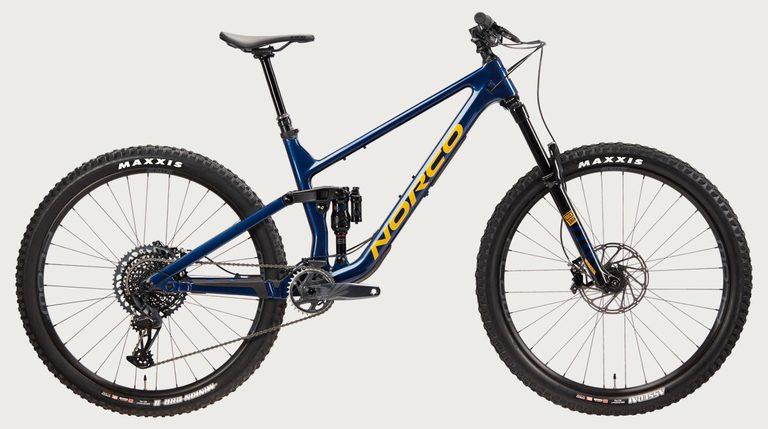

Norco Sight C2 SRAM Gen 4

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

mixed"

Suspension

Full

Rear travel

150 mm

Rear axle spacing

148 mm

Seatpost diameter

34.90 mm

Bottom bracket

PF92

Max tire size

2.35" – 2.6"

Stock build

• ForkRockShox Lyrik Ultimate (160mm)
• StemNorco Alloy, 40mm Length, 35mm Clamp
• ChainSRAM Eagle
• GripsDMR DeathGrip Soft, Thin (S, M), Thick (L, XL)
• SaddleSDG Bel Air V3 Lux Alloy
• HeadsetFSA #57 E Sealed Bearing, Tapered
• CassetteSRAM Eagle XG 1275, 10-52T
• CranksetSRAM GX Eagle DUB, 34T (27.5), 32T (27.5 S), 32T (29), 170mm
• SeatpostTranzX YS105, Adjustable Travel, 34.9mm, 150mm (S), 170mm (M), 200mm (L, XL)
• ShiftersSRAM GX Eagle
• HandlebarDeity Ridgeline, 800mm, 25mm Rise
• Rear TireMaxxis Minion DHR II 2.4" WT 3C, Maxx Terra/EXO+/TR, Folding
• Front TireMaxxis Assegai 2.5" 3C Maxx Terra/EXO+/TR, Folding
• Rear BrakeSRAM Code RSC
• Rear ShockRockShox Super Deluxe Ultimate DH, LINM Tune, Meg Neg Air Can, 185x52.5mm Trunnion
• Rear WheelRace Face Trace, 12x148mm Boost, XD, 6 Bolt
• Front BrakeSRAM Code RSC
• Front WheelRace Face Trace, 15x110mm Boost, 6 Bolt
• Brake LeversSRAM Code RSC
• Bottom BracketSRAM DUB PF92 Wide
• Rear Brake PadsSRAM Metallic Pads
• Rear DerailleurSRAM GX Eagle
• Front Brake PadsSRAM Metallic Pads
• Rear Brake RotorSRAM Centerline (180mm)
• Front Brake RotorSRAM Centerline (200mm)
