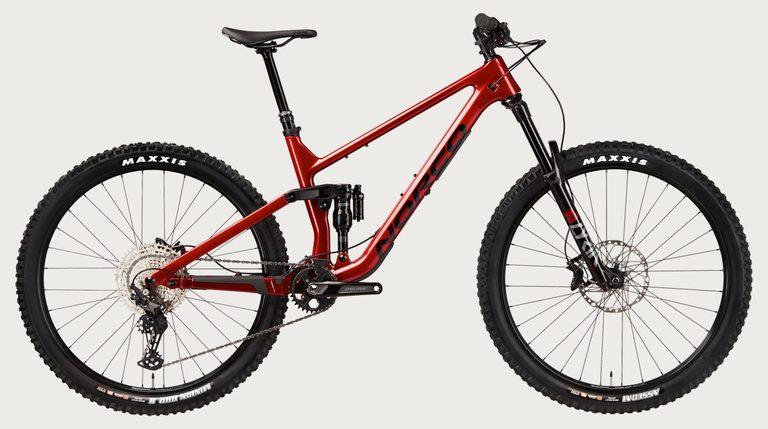

Norco Sight C3 Shimano Gen 4

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Suspension

Full

Rear travel

150 mm

Rear axle spacing

148 mm

Seatpost diameter

34.90 mm

Bottom bracket

PF92

Max tire size

2.35" – 2.6"

Stock build

• ForkRockShox Rock Shox Lyrik Select 160mm
• StemNorco Alloy, 40mm Length, 35mm Clamp
• ChainShimano Deore M6100
• GripsSDG Thrice Lock-On, Thin (S, M), Thick (L, XL)
• SaddleSDG Bel Air V3 Lux Alloy
• HeadsetFSA #57 E Sealed Bearing, Tapered
• CassetteShimano Deore, 10x51
• CranksetShimano Deore FC-MT6120-1, 32T, 170mm
• SeatpostTranzX YS105, Adjustable Travel, 34.9mm, 150mm (S), 170mm (M), 200mm (L, XL)
• ShiftersShimano Deore 11spd
• HandlebarButted 6061 Alloy, 800mm, 25mm Rise
• Rear TireMaxxis Minion DHR II 2.4" WT 3C, Maxx Terra/EXO+/TR, Folding
• Front TireMaxxis Assegai 2.5" 3C Maxx Terra/EXO+/TR, Folding
• Rear BrakeShimano BR-MT520
• Rear ShockRockShox Super Deluxe Ultimate DH, LINM Tune, Meg Neg Air Can, 185x52.5mm Trunnion
• Rear WheelShimano FH-MT510, 12x148mm Boost, Micro Spline, Center Lock
• Front BrakeShimano BR-MT520
• Front WheelShimano HB-MT410, 15x110mm Boost, Center Lock
• Brake LeversShimano BR-MT520
• Bottom BracketShimano PF92
• Rear Brake PadsShimano BR-MT520, 4 piston, Metallic Pads
• Rear DerailleurShimano Deore 11spd
• Front Brake PadsShimano BR-MT520, 4 piston, Metallic Pads
• Rear Brake RotorShimano RT-64, 180mm, C-Lock
• Front Brake RotorShimano RT-64, 203mm, C-Lock
