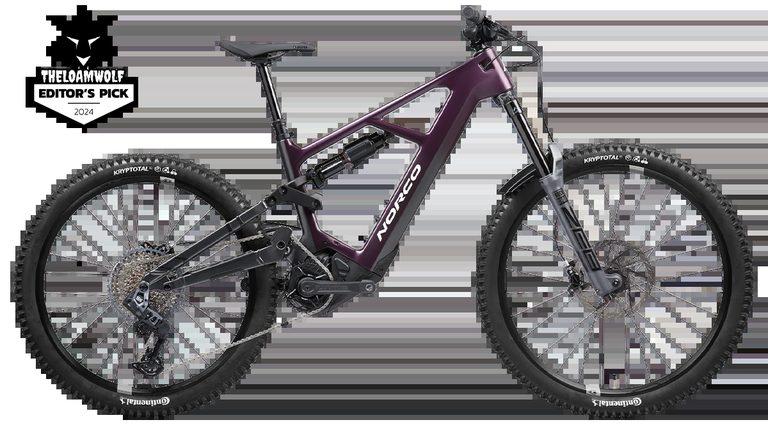

2024 Norco Range VLT C1

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29/27.5"

Suspension

Full

Rear travel

170 mm

Rear axle spacing

148 mm

Seatpost diameter

34.90 mm

Headset standard

FSA No. 55 Sealed Bearing, 1 1/8" - 1.8" Tapered

Max tire size

2.35" – 2.6"

Stock build

• ForkRockShox Zeb Ultimate, 180mm Travel, E-MTB Rated, Fender Included
• StemNorco SL 6061 Alloy 40mm Length, 35mm Clamp
• ChainSRAM GX Eagle T-Type
• GripsWTB Wavelength, 140mm Length
• SaddleSDG Bel Air V3 Lux Alloy
• HeadsetFSA No. 55 Sealed Bearing, 1 1/8" - 1.8" Tapered
• CassetteSRAM 1275 T-Type 10-52T
• Cranksete*thirteen e*Plus 165mm
• SeatpostTranzX YSI08FL RAD+ Travel Adjust Dropper, 34.9mm, 125mm (S1), 150mm (S2),170mm (S3), 200mm (S4, S5)
• ShiftersSRAM AXS Pod Controller
• HandlebarButted 6061 Alloy, 800mm, 25mm Rise
• Rear TireContinental Kryptotal Enduro 27.5" x 2.4", Foldable
• Front TireContinental Kryptotal-F Enduro 29" x 2.4", Foldable
• Rear BrakeSRAM Code RSC
• Rear ShockRockShox Vivid Select+, 230x65mm
• Rear WheelCrankbrothers Synthesis E-Bike, 12x148mm, XD, 6 Bolt
• Front BrakeSRAM Code RSC
• Front WheelCrankbrothers Synthesis E-Bike, 15x110mm Boost, 6 Bolt
• Brake LeversSRAM Code RSC
• Bottom BracketBosch BES3 DU
• Rear Brake Padssintered pads
• Rear DerailleurSRAM GX Eagle AXS T-Type
• Front Brake Padssintered pads
• Rear Brake RotorSRAM HS2, 6-bolt, 200mm
• Front Brake RotorSRAM HS2 220 mm, 6-bolts
