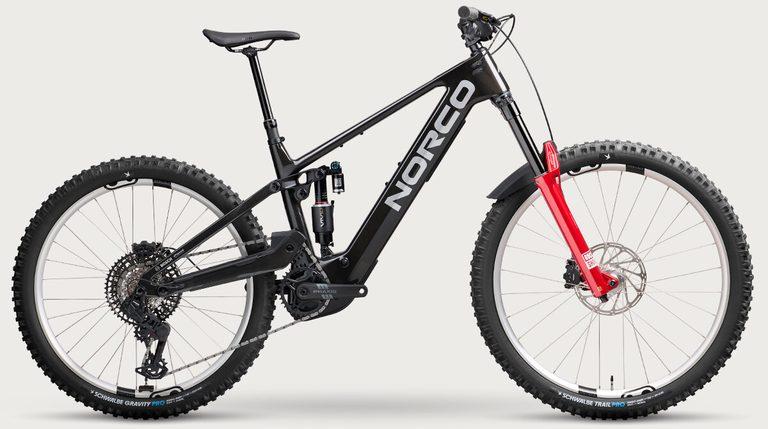

2027 Norco Range VLT CX C1 Gen 4

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29/27.5"

Suspension

Full

Rear travel

160 mm

Rear axle spacing

148 mm

Seatpost diameter

31.60 mm

Headset standard

1 1/8" - 1.8" Tapered, ZS44/28.6 | ZS56/40

Max tire size

2.35" - 2.6"

Stock build

• ForkRockShox ZEB Ultimate B1, Linear XL w/ ButterCups, Charger 3.2 RC2 damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 170mm travel
• StemNorco Alloy, 40mm Length, 35mm Clamp
• ChainSRAM Eagle 70 T-Type, 12spd
• GripsWTB Wavelength, 140mm Length
• SaddleWTB Rocket Fusion Med, 142x250 mm
• HeadsetFSA No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered, ( ZS44/28.6 | ZS56/40 )
• CassetteSRAM 1275 Eagle T-Type, 10-52T, 12sp
• CranksetPraxis HD Aluminum Bosch Cranks, 34T, 155mm (S2,S3) - 160mm (S4, S5)
• SeatpostSDG Tellis V2, 31.6mm, 150mm (S2) -170mm (S3) -200mm (S4, S5)
• ShiftersSRAM AXS Pod Controller
• HandlebarNorco 6061 DB Alloy, 800mm, 25mm Rise(S2) - 35mm Rise(S3,S4,S5)
• Rear TireSchwalbe Magic Mary, Gravity Pro, Soft, Radial, 27.5x2.5"
• Front TireSchwalbe Magic Mary, Trail casing, Ultra Soft , Radial, 29x2.5"
• Rear BrakeSRAM Maven Bronze
• Rear ShockRockShox Vivid 2 Ultimate Air, 205x65mm TR
• Rear WheelCrankbrothers Crank Bros. Synthesis E-Bike V2, 12x148mm Boost, XD, 32h, 6-bolt
• Front BrakeSRAM Maven Bronze
• Front WheelCrankbrothers Crank Bros. Synthesis, 15x110mm Boost, 32h, 6 Bolt
• Brake LeversSRAM Maven Bronze
• Bottom BracketBosch BDU38
• Rear Brake PadsSRAM Maven Bronze B1, Metallic Pads
• Rear DerailleurSRAM S1000 Eagle AXS T-Type, 12sp
• Front Brake PadsSRAM Maven Bronze B1, Metallic Pads
• Rear Brake RotorSRAM Centerline A2, 180mm, 2mm thickness, 6-bolt
• Front Brake RotorSRAM Centerline A2, 200mm, 2mm thickness, 6-bolt
