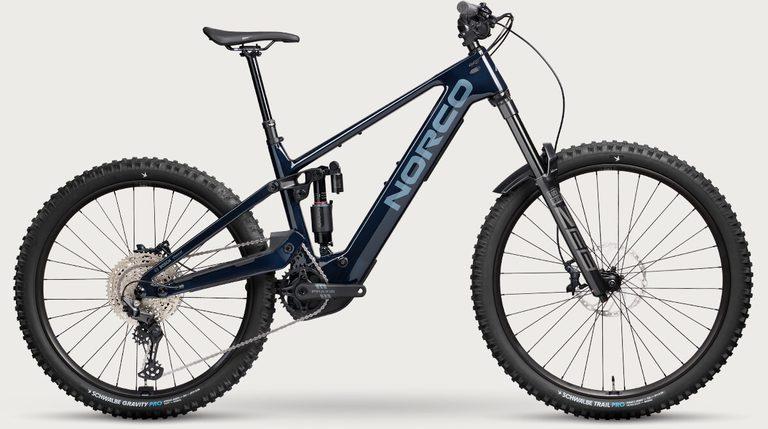

Norco Range VLT CX C2

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29/27.5"

Suspension

Full

Rear travel

160 mm

Seatpost diameter

31.60 mm

Headset standard

ZS44/28.6 | ZS56/40

Max tire size

2.35" - 2.6"

Stock build

• ForkRockShox ZEB Base (170mm)
• StemNorco 6061, 40mm Length, 35mm Clamp
• ChainShimano Deore M6100
• GripsWTB Wavelength, 140mm Length
• SaddleWTB Rocket Fusion Med, 142x250 mm
• HeadsetFSA No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered, ( ZS44/28.6 | ZS56/40 )
• CassetteShimano Deore, 10x51
• CranksetPraxis HD Aluminum Bosch Cranks, 34T, 155mm (S1,S2,S3) - 160mm (S4, S5)
• SeatpostTranzX YSP23KL, 31.6mm, 150mm (S2) -170mm (S3) -200mm (S4, S5)
• ShiftersShimano Deore SL-M6200-R, 12sp
• HandlebarNorco 6061 DB Alloy, 800mm, 25mm
• Rear TireSchwalbe Magic Mary, Gravity Pro, Soft, Radial, 27.5x2.5"
• Front TireSchwalbe Magic Mary, Trail casing, Ultra Soft , Radial, 29x2.5"
• Rear BrakeShimano SLX BR-M7120
• Rear ShockRockShox Vivid 2 Base Air, 205x65mm TR
• Rear WheelShimano FH-TC500-MS-B, 12x148mm Boost, Micro Spline, 32H, C-lock
• Front BrakeShimano SLX BR-M7120
• Front WheelShimano HB-TC500-15-B,15x110mm Boost, 32H, C-lock
• Brake LeversShimano SLX BL-M7100
• Bottom BracketBosch BDU38
• Rear Brake Padsmetallic pads
• Rear DerailleurShimano Deore RD-M6200, SGS, 12sp
• Front Brake Padsmetallic pads
• Rear Brake RotorShimano SM-RT64, 203mm, C-lock
• Front Brake RotorShimano SM-RT64, 203mm, C-lock
