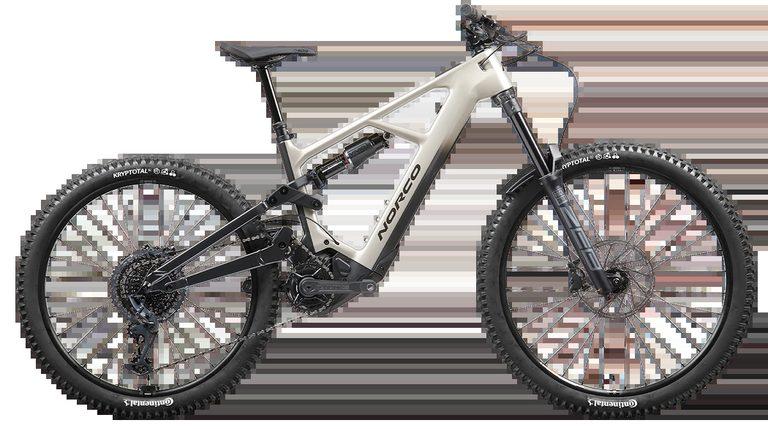

2024 Norco Range VLT C2 Gen 3

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29/27.5"

Suspension

Full

Rear travel

170 mm

Rear axle spacing

148 mm

Seatpost diameter

34.90 mm

Headset standard

1 1/8" - 1.8" Tapered

Max tire size

2.35"-2.6"

Stock build

• ForkRockShox Zeb Select+, 180mm Travel, E-MTB Rated, Fender Included
• StemNorco SL 6061 Alloy 40mm Length, 35mm Clamp
• ChainSRAM GX Eagle
• GripsWTB Wavelength, 140mm Length
• SaddleSDG Bel Air V3 Lux Alloy
• HeadsetFSA No. 55 Sealed Bearing, 1 1/8" - 1.8" Tapered
• CassetteSRAM 1275 Eagle, 10-52T
• Cranksete*thirteen e*Plus 165mm
• SeatpostTranzX YSI08FL RAD+ Travel Adjust Dropper, 31.6mm, 125mm (S1) -150mm (S2) -170mm (S3) -200mm (S4, S5)
• ShiftersSRAM GX Eagle
• HandlebarButted 6061 Alloy, 800mm, 25mm Rise
• Rear TireContinental Kryptotal Enduro 27.5" x 2.4", Foldable
• Front TireContinental Kryptotal-F Enduro 29" x 2.4", Foldable
• Rear BrakeSRAM DB8
• Rear ShockRockShox Vivid Select+, 230x65mm
• Rear WheelBear Pawls 12x148mm Boost, XD, 6 Bolt
• Front BrakeSRAM DB8
• Front WheelBear Pawls 110x15mm Boost, 6-Bolt
• Brake LeversSRAM DB8
• Bottom BracketBosch BES3 DU
• Rear Brake PadsSRAM DB8 4 Piston, Sintered Pads
• Rear DerailleurSRAM GX Eagle
• Front Brake PadsSRAM DB8 4 Piston, Sintered Pads
• Rear Brake RotorSRAM Centerline (200mm)
• Front Brake RotorSRAM Code RSC hydraulic disc, 220/200mm CenterLine rotors
