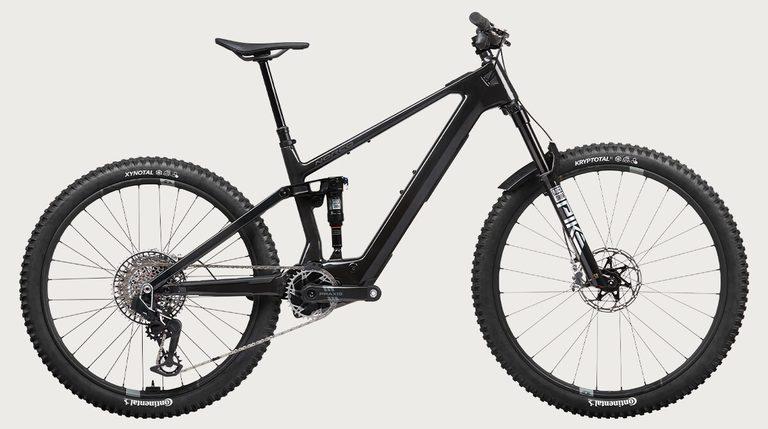

2024 Norco Fluid VLT C1 130

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29/27.5"

Suspension

Full

Rear travel

130 mm

Rear axle spacing

148 mm

Seatpost diameter

31.60 mm

Max tire size

2.35" – 2.6"

Stock build

• ForkRockShox Pike Ultimate, 29", 140mm Travel, 44mm Offset, Fender Included
• StemNorco SL 6061 Alloy 40mm Length, 35mm Clamp
• ChainSRAM XX Eagle T-Type
• GripsWTB Wavelength, 140mm Length
• SaddleFizik Ridon
• HeadsetFSA No. 57 ZS, Carbon Top Cover
• CassetteSRAM XX Eagle, T-Type, 10-52, 12-speed
• CranksetPraxis Carbon Bosch, 165mm
• SeatpostOneUp One Up Travel Adjust Dropper, 31.6mm, 125mm (S1), 150mm (S2), 170mm (S3), 200mm (S4, S5)
• ShiftersSRAM Pod Ultimate Controller
• HandlebarOneUp One Up Carbon, 800mm, 20mm Rise
• Rear TireContinental Xynotal, Enduro, Soft, 27.5" x 2.4", Foldable
• Front TireContinental Kryptotal 29 x 2.4"
• Rear BrakeSRAM Level Ultimate Stealth 4-Piston
• Rear ShockRockShox Deluxe Ultimate, DebonAir, 2-Pos mode adjust, adjustable rebound
• Rear WheelIndustry Nine 101, 148x12mm Boost, 6-Bolt, XD
• Front BrakeSRAM Level Ultimate Stealth 4-Piston
• Front WheelIndustry Nine 101, 110x15mm Boost, 6-Bolt
• Brake LeversSRAM Level Ultimate Stealth
• Rear DerailleurSRAM XX SL Eagle AXS T-Type
• Rear Brake RotorSRAM G2 RSC hydraulic disc, 180/180mm CenterLine X rotors, 6-bolt
• Front Brake RotorSRAM G2 RSC hydraulic disc, 180/180mm CenterLine X rotors, 6-bolt
