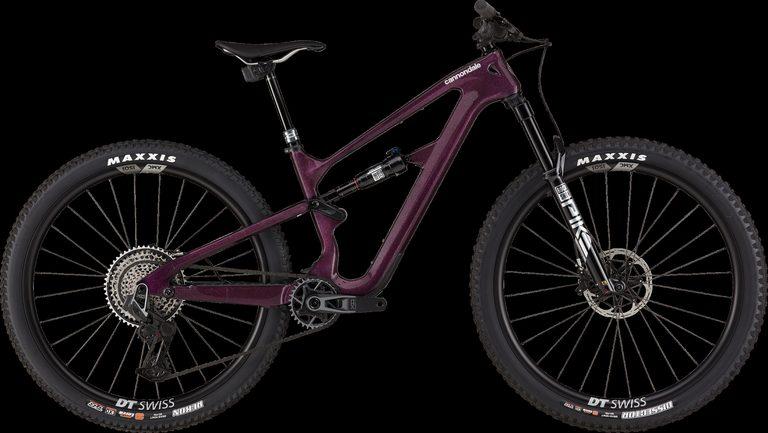

Cannondale Habit LTD

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29"

Suspension

Full

Rear travel

130 mm

Rear axle spacing

148 mm

Headset standard

Integrated Sealed Bearing, Tapered

Bottom bracket

BSA threaded BB

Max tire size

2.4

Stock build

• ForkRockShox Pike Ultimate (140mm)
• StemCannondale 1, 7075 Alloy, 1-1/8", 35mm, 0°
• ChainSRAM XO Eagle T-Type
• GripsCannondale TrailShroom
• SaddleCannondale Flat Race, Ti rails
• HeadsetAcros integrated sealed bearing, tapered
• CassetteSRAM XO Eagle T-Type, 10-52, 12-speed
• CranksetSRAM XO Eagle T-Type, X-Sync, 30t
• SeatpostRockShox Rock Shox Reverb AXS
• ShiftersSRAM AXS T-Type Pod Controller
• HandlebarCannondale HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm
• Rear TireMaxxis REKON 29X2.4 3C TR EXO 120TPI
• Front TireMaxxis (F) Maxxis Dissector, 29x2.4" (27.5x2.4" - XS), 3C, EXO, tubeless ready
• Rear BrakeSRAM G2 RSC
• Rear ShockRockShox Deluxe Ultimate, DebonAir, 2-Pos mode adjust, adjustable rebound
• Rear WheelDT Swiss (R) DT Swiss 240 with Ratchet EXP 36, 12x148mm thru-axle
• Front BrakeSRAM G2 RSC
• Front WheelDT Swiss (F) DT Swiss 240, 15x110mm
• Brake LeversSRAM G2 RSC
• Bottom BracketSRAM DUB BSA MTB73 Wide
• Rear DerailleurSRAM XO Eagle AXS, T-Type
• Rear Brake RotorSRAM G2 RSC hydraulic disc, 180/180mm CenterLine X rotors, 6-bolt
• Front Brake RotorSRAM G2 RSC hydraulic disc, 180/180mm CenterLine X rotors, 6-bolt
