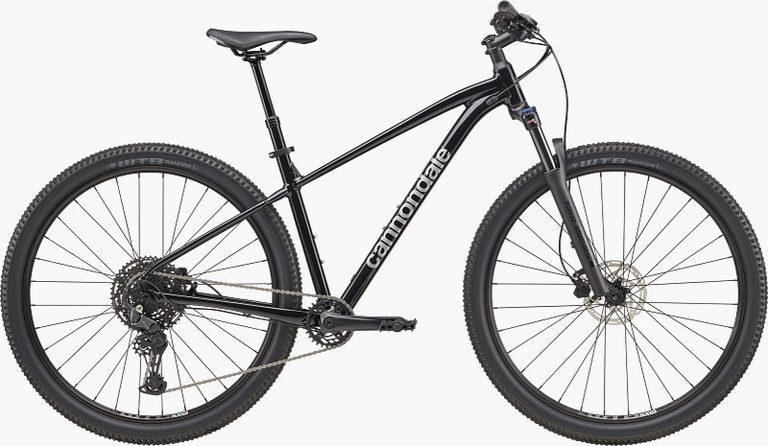

Cannondale Trail 1

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Aluminum

Wheel size

29/27.5"

Suspension

Hardtail

Rear axle spacing

142 mm

Seatpost diameter

31.60 mm

Headset standard

1-1/8" Semi-Integrated

Bottom bracket

BSA-73

Stock build

• ForkSR Suntour XCM Boost, coil, 100mm travel, 46mm offset (29"), 80mm travel, 42mm offset (27.5")
• StemCannondale 4, 6061 Alloy, 31.8, 6°
• ChainKMC X10, 10-Speed
• GripsCannondale Cannondale
• SaddleCannondale Trail
• CassetteShimano CUES, 11-48, 10-speed
• CranksetProWheel Charm, 32t (27.5) or 30t (29) XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (29) L: 170mm (29) XL: 175mm (29) XXL: 175mm (29)
• SeatpostJD Dropper, internal routing, 31.6, 130mm
• ShiftersShimano CUES U6000 w/optical gear display, 10 speed
• HandlebarCannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm
• Rear TireWTB Trail Boss 27.5x2.25" (XS,S) / 29x2.25" (M, L, XL) Comp, 30 TPI
• Front TireWTB Trail Boss 27.5x2.25" (XS,S) / 29x2.25" (M, L, XL) Comp, 30 TPI
• Rear BrakeTektro M275 hydraulic disc, 160/160mm rotors
• Rear WheelShimano TC500, 12x142mm
• Front BrakeTektro M275 hydraulic disc, 160/160mm rotors
• Front WheelShimano TC500, 15x100mm
• Brake LeversTektro hydraulic disc
• Bottom BracketProWheel square taper
• Rear DerailleurShimano CUES U6000 GS
• Rear Brake RotorTektro M275 hydraulic disc, 160/160mm rotors
• Front Brake RotorTektro M275 hydraulic disc, 160/160mm rotors
