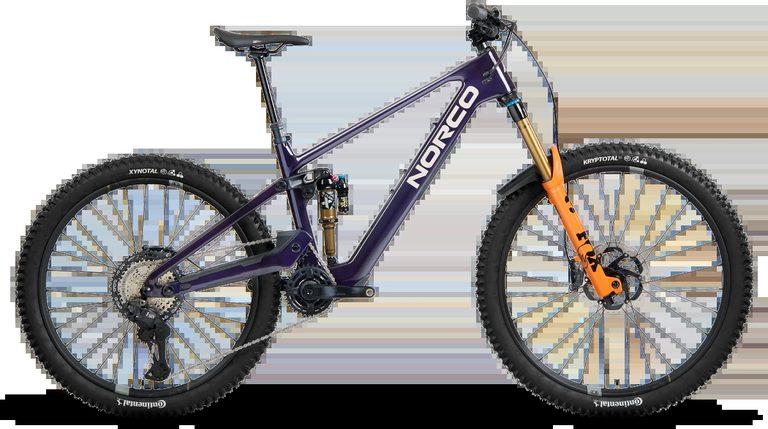

2026 Norco Sight VLT TQ C1 Gen 4

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29/27.5"

Suspension

Full

Rear travel

150 mm

Rear axle spacing

148 mm

Seatpost diameter

31.60 mm

Headset standard

ZS44/28.6 | ZS56/40

Stock build

• ForkFox 36 Factory Grip X2 (160mm)
• StemNorco Alloy, 40mm Length, 35mm Clamp
• ChainShimano Deore XT CN-M8100, 12sp
• GripsWTB Wavelength, 140mm Length
• SaddleWTB Rocket Fusion Med, 142x250 mm
• HeadsetFSA No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered, ( ZS44/28.6 | ZS56/40 )
• CassetteShimano Deore XT CS-M8200-12 (10-51T)
• Cranksete*thirteen Helix Race Alloy TQ, 34T, 155mm (S1,S2) - 160mm (S3,S4,S5)
• SeatpostTranzX YSI08 RAD+ Travel Adjust Dropper, 31.6mm, 125mm (S1) -150mm (S2) -170mm (S3) -200mm (S4, S5)
• ShiftersShimano Deore XT Di2 SW-M8250-IR, 12sp
• HandlebarRace Face Era Carbon, 760mm - 20mm rise (S1,S2), 780mm - 20mm rise (S3,S4) 780mm - 40mm rise (S5)
• Rear TireContinental Xynotal, Enduro, Soft, 27.5" x 2.4", Foldable
• Front TireContinental Kryptotal-F, Enduro, Soft, 29" x 2.4", Foldable
• Rear BrakeShimano Deore XT BR-M8220
• Rear ShockFox Factory Float X, 230x60mm Std, 2 position
• Rear WheelCrankbrothers Crank Bros. Synthesis Enduro, 12x148mm Boost, Micro Spline, 32h, 6-Bolt
• Front BrakeShimano Deore XT BR-M8220
• Front WheelCrankbrothers Crank Bros. Synthesis Enduro, 15x110mm Boost, 32h, 6-Bolt
• Brake LeversShimano XT BL-M8200
• Rear Brake Padsmetallic pads
• Rear DerailleurShimano Deore XT Di2 RD-M8250, SGS, 12sp
• Front Brake Padsmetallic pads
• Rear Brake RotorShimano RT-MT905, 180mm, 6-Bolt
• Front Brake RotorShimano RT-MT905, 203mm, 6-Bolt
