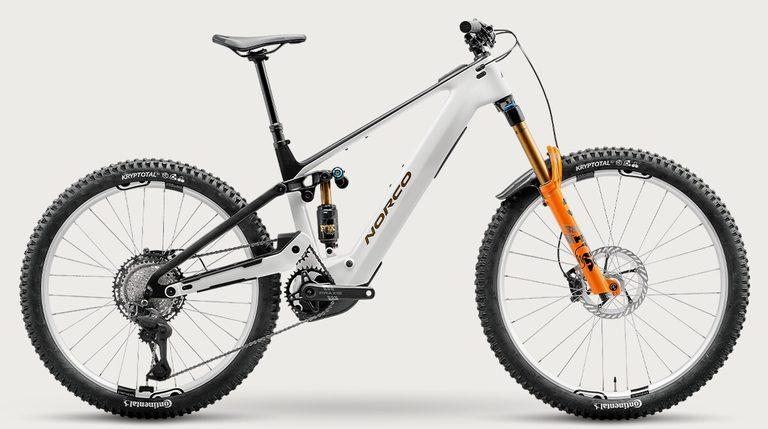

2026 Norco Range VLT CX C1 Gen 4

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29/27.5"

Suspension

Full

Rear travel

160 mm

Rear axle spacing

148 mm

Seatpost diameter

31.60 mm

Headset standard

ZS44/28.6 / ZS56/40

Max tire size

2.35" - 2.6"

Stock build

• ForkFox 38 Factory Float, Grip X2, HSC / LSC / LSR, 170mm, 44mm Offest, Fender Included
• StemNorco Alloy, 40mm Length, 35mm Clamp
• ChainShimano Deore XT CN-M8100, 12sp
• GripsWTB Wavelength, 130mm Length
• SaddleFizik Terra Aidon X5
• HeadsetFSA No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered, ( ZS44/28.6 | ZS56/40 )
• CassetteShimano Deore XT CS-M8200-12 (10-51T)
• CranksetPraxis HD Aluminum Bosch Cranks, 34T, 155mm (S1,S2,S3) - 160mm (S4, S5)
• SeatpostTranzX YSI08 RAD+ Travel Adjust Dropper, 31.6mm, 125mm (S1) -150mm (S2) -170mm (S3) -200mm (S4, S5)
• ShiftersShimano Deore XT Di2 SW-M8250-IR, 12sp
• HandlebarNorco 6061 DB Alloy, 800mm, 25mm Rise(S2) - 35mm Rise(S3,S4,S5)
• Rear TireContinental Kryptotal-R 27.5" or 29" x 2.4" Soft Compound Enduro Casing
• Front TireContinental Kryptotal-F, Enduro, Soft, 29" x 2.4", Foldable
• Rear BrakeShimano Deore XT BR-M8220
• Rear ShockFox 2026 Fox Factory Float X2
• Rear WheelCrankbrothers Crank Bros. Synthesis Enduro, 12x148mm Boost, Micro Spline, 32h, 6-Bolt
• Front BrakeShimano Deore XT BR-M8220
• Front WheelCrankbrothers Crank Bros. Synthesis Enduro, 15x110mm Boost, 32h, 6-Bolt
• Brake LeversShimano XT BL-M8200
• Bottom BracketBosch BES3 DU
• Rear Brake Padsmetallic pads
• Rear DerailleurShimano Deore XT Di2 RD-M8250, SGS, 12sp
• Front Brake Padsmetallic pads
• Rear Brake RotorShimano RT-MT905, 180mm, 6-Bolt
• Front Brake RotorShimano RT-MT905, 203mm, 6-Bolt
