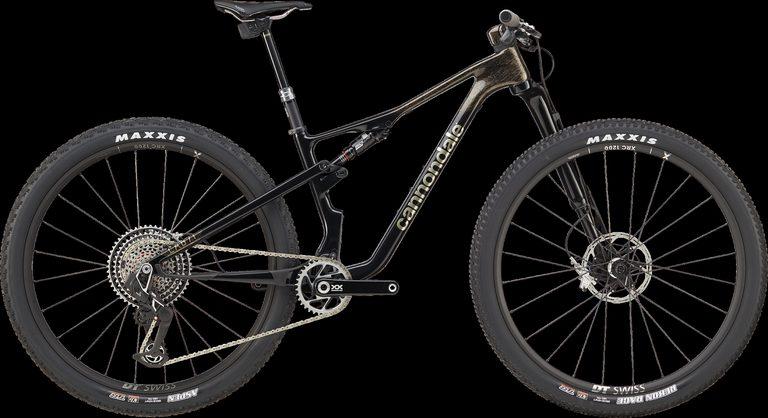

Cannondale Scalpel LAB71 LAB71

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29"

Suspension

Full

Rear travel

120 mm

Rear axle spacing

148 mm

Headset standard

1.5" headtube with 1-1/8" upper reducer/internal cable guide

Bottom bracket

73mm BSA

Max tire size

29 x 2.4"

Stock build

• ForkCannondale Lefty Ocho 120 Carbon, 120mm, Chamber Damper, OppO Spring System, tapered steerer, 50mm offset, TwistLoc Ultimate remote dual lockout
• StemCannondale SystemBar XC-One Flat, carbon integrated bar/stem
• ChainSRAM XX SL, T-Type, 12-speed
• GripsRockShox Smooth Silicone
• SaddlePrologo Dimension NDR, Tirox rails
• HeadsetAcros ICR
• CassetteSRAM XX SL Eagle, 10-52, T-Type, 12-speed
• CranksetSRAM XX SL T-Type, 34T
• SeatpostRockShox Rock Shox Reverb AXS
• ShiftersSRAM AXS T-Type Ultimate Pod Controller
• HandlebarCannondale SystemBar XC-One Flat, carbon, integrated bar/stem, internal cable routing, 5° upsweep, 8° backsweep, 760mm width, -6° stem, 1-1/8" clamp
• Rear TireMaxxis (R) Maxxis Aspen WT, 29x2.4", EXO Protection, tubeless ready
• Front TireMaxxis (F) Maxxis Rekon Race WT, 29x2.4", EXO Protection, tubeless ready
• Rear BrakeSRAM Level Ultimate Stealth 4-Piston
• Rear ShockRockShox SIDLuxe Ultimate, 2-Pos mode adjust, adjustable rebound, 190x45, TwistLoc Ultimate remote dual lockout
• Rear WheelDT Swiss Lefty, 6-bolt (F) / DT Swiss 180 Ratchet EXP 36, centerlock, XD driver (R)
• Front BrakeSRAM Level Ultimate Stealth 4-Piston
• Front WheelDT Swiss Lefty, 6-bolt (F) / DT Swiss 180 Ratchet EXP 36, centerlock, XD driver (R)
• Brake LeversSRAM Level Ultimate Stealth
• Bottom BracketSRAM DUB BSA
• Rear DerailleurSRAM XX SL Eagle AXS, T-Type
• Rear Brake RotorSRAM CLX rotors, 180mm 6-bolt (F) /160mm centerlock (R)
• Front Brake RotorSRAM CLX rotors, 180mm 6-bolt (F) /160mm centerlock (R)
