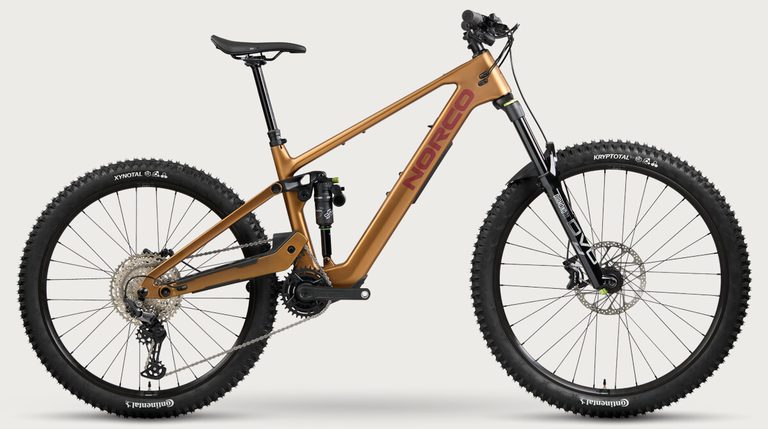

2026 Norco Sight VLT TQ C3 Gen 4

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29/27.5"

Suspension

Full

Rear travel

150 mm

Rear axle spacing

148 mm

Seatpost diameter

31.60 mm

Headset standard

1 1/8" - 1.8" Tapered, ( ZS44/28.6 | ZS56/40 )

Max tire size

2.35" – 2.6"

Stock build

• ForkDVO Diamond 36 D1, High/Low Speed Compression | Rebound , 160mm, 44mm Offset
• StemNorco Alloy, 40mm Length, 35mm Clamp
• ChainShimano Deore CN-M6100, 12spd
• GripsWTB Wavelength, 140mm Length
• SaddleWTB Rocket Fusion Med, 142x250 mm
• HeadsetFSA No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered, ( ZS44/28.6 | ZS56/40 )
• CassetteShimano Deore CS-M6100-12, 10-51T, 12sp
• Cranksete*thirteen Alloy TQ, 34T, 155mm (S1,S2) - 160mm (S3,S4,S5)
• SeatpostTranzX YSI36KL, 31.6mm, 125mm (S1) -150mm (S2) -170mm (S3) -200mm (S4, S5)
• ShiftersShimano Deore SL-M6100-R, 12sp
• HandlebarNorco 6061 DB Alloy, 800mm, 25mm Rise(S2) - 35mm Rise(S3,S4,S5)
• Rear TireContinental Xynotal, Enduro, Soft, 27.5" x 2.4", Foldable
• Front TireContinental Kryptotal-F, Enduro, Soft, 29" x 2.4", Foldable
• Rear BrakeTRP Slate EVO, Organic Pads
• Rear ShockDVO Topaz Pro Gen 3, 230x60mm Std
• Rear WheelBear Pawls BMB-007, 12x148mm Boost, Micro Spline, 32H, 6-Bolt
• Front BrakeTRP Slate EVO, Organic Pads
• Front WheelBear Pawls BMB-003,15x110mm Boost, 32H, 6 Bolt
• Brake LeversTRP Slate EVO
• Rear Brake PadsOrganic Pads
• Rear DerailleurShimano Deore RD-M6100, SGS, 12spd
• Front Brake PadsOrganic Pads
• Rear Brake RotorTRP RS01E, 180mm, 2.3mm Thickness, 6-Bolt
• Front Brake RotorTRP 203mm, 2.3mm Thickness, 6-Bolt
