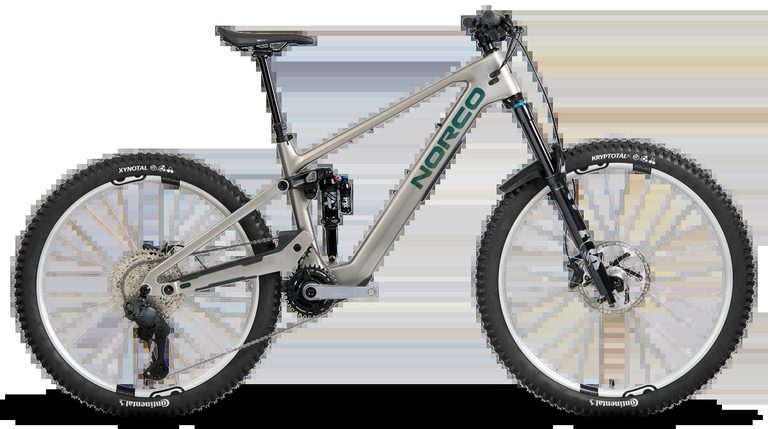

2026 Norco Sight VLT TQ C2 Gen 4

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29/27.5"

Suspension

Full

Rear travel

150 mm

Rear axle spacing

148 mm

Seatpost diameter

31.60 mm

Headset standard

ZS44/28.6 | ZS56/40

Stock build

• ForkFox 36 Performance Elite GripX2, HSC/LSC/HSR/LSR, 160mm, 44mm Offset, Fender Included
• StemNorco Alloy, 40mm Length, 35mm Clamp
• ChainShimano Deore M6100
• GripsWTB Wavelength, 140mm Length
• SaddleWTB Rocket Fusion Med, 142x250 mm
• HeadsetFSA No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered, ( ZS44/28.6 | ZS56/40 )
• CassetteShimano Deore, 10x51
• Cranksete*thirteen Helix Race Alloy TQ, 34T, 155mm (S1,S2) - 160mm (S3,S4,S5)
• SeatpostTranzX YSI08 RAD+ Travel Adjust Dropper, 31.6mm, 125mm (S1) -150mm (S2) -170mm (S3) -200mm (S4, S5)
• ShiftersShimano Deore Di2 SW-M6250-IR, 12spd
• HandlebarNorco 6061 DB Alloy, 800mm, 25mm
• Rear TireContinental Xynotal, Enduro, Soft, 27.5" x 2.4", Foldable
• Front TireContinental Kryptotal-F, Enduro, Soft, 29" x 2.4", Foldable
• Rear BrakeShimano Deore BR-M6120
• Rear ShockFox Float X Performance, 230x60mm Std, 2 position
• Rear WheelCrankbrothers Crank Bros. Synthesis, 12x148mm Boost, Micro Spline, 32h, 6-Bolt
• Front BrakeShimano Deore BR-M6120
• Front WheelCrankbrothers Crank Bros. Synthesis, 15x110mm Boost, 32h, 6-Bolt
• Brake LeversShimano Deore M6100
• Rear Brake Padsmetallic pads
• Rear DerailleurShimano Deore Di2 RD-M6250, SGS, 12spd
• Front Brake Padsmetallic pads
• Rear Brake RotorShimano SM-RT86, 180mm, 6-Bolt
• Front Brake RotorShimano SM-RT86, 203mm, 6-Bolt
