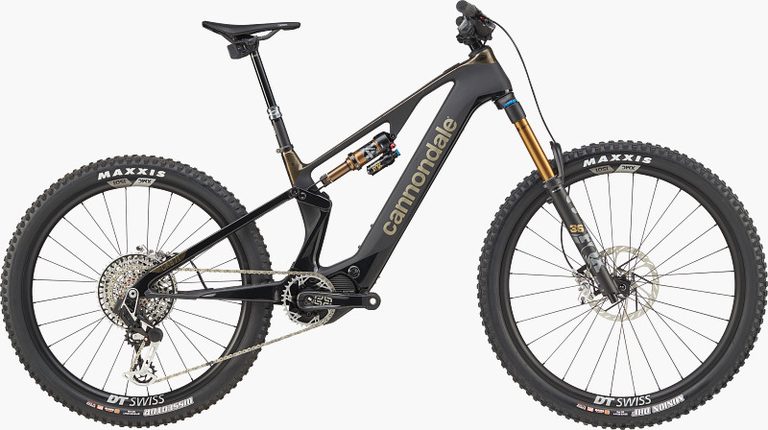

2024 Cannondale Moterra SL LAB71 LAB71

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29/27.5"

Suspension

Full

Rear travel

150 mm

Rear axle spacing

148 mm

Seatpost diameter

31.60 mm

Stock build

• ForkFox Float Factory 36, 160mm travel, Grip2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
• StemOneUp Stem, 6061 Alloy, 1-1/8", 35mm, 0°
• ChainSRAM XX Eagle, T-Type, Flattop
• GripsCannondale TaperRidge
• SaddleFizik Terra Ridon X1, 145mm, Wingflex, Carbon Mobius rail 7x10mm
• HeadsetAcros Adjustable Angle (1.2°)
• CassetteSRAM XX Eagle, T-Type, 10-52, 12-speed
• Cranksete*thirteen e*spec Race Carbon - Gen 4, 165mm, 34T
• SeatpostRockShox Rock Shox Reverb AXS
• ShiftersSRAM Eagle AXS T-Type Ultimate Pod Controller
• HandlebarOneUp Carbon Ebar, 35mm clamp, 35mm Rise, 8° sweep, 5° rise, 780mm
• Rear TireMaxxis (R) Maxxis Dissector , 27.5x2.4", 3C, EXO+, tubeless ready
• Front TireMaxxis (F) Maxxis DHF, 29x2.5 ", 3C, EXO+, tubeless ready
• Rear BrakeSRAM Code Ultimate Stealth
• Rear ShockFox Float X Factory, 2 pos adj, EVOL LV, 210x55mm
• Rear WheelDT Swiss (R) DT Swiss 240 Ratchet EXP 36, 12x148mm
• Front BrakeSRAM Code Ultimate Stealth
• Front WheelDT Swiss (F) DT Swiss 240, 15x110mm
• Brake LeversSRAM Code Ultimate Stealth
• Rear DerailleurSRAM XX Eagle AXS, T-Type
• Rear Brake RotorSRAM HS2, 6-bolt, 200mm
• Front Brake RotorSRAM HS2, 6-bolt, 200mm
