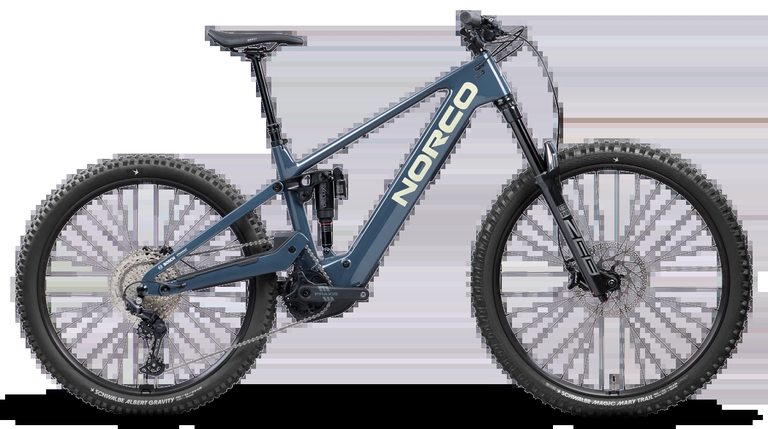

Norco Sight VLT CX C3 Gen 4

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29/27.5"

Suspension

Full

Rear travel

150 mm

Rear axle spacing

148 mm

Seatpost diameter

31.60 mm

Headset standard

1 1/8" - 1.8" Tapered, ZS44/28.6 | ZS56/40

Max tire size

2.6"

Stock build

• ForkRockShox ZEB Select (160mm)
• StemNorco 6061, 40mm Length, 35mm Clamp
• ChainShimano Deore CN-M6100, 12spd
• GripsWTB Wavelength, 140mm Length
• SaddleWTB Rocket Fusion Med, 142x250 mm
• HeadsetFSA No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered, ( ZS44/28.6 | ZS56/40 )
• CassetteShimano Deore CS-M6100-12, 10-51T, 12sp
• CranksetPraxis HD Aluminum Bosch Cranks, 34T, 155mm (S1,S2,S3) - 160mm (S4, S5)
• SeatpostTranzX YSP23KL, 31.6mm, 150mm (S2) -170mm (S3) -200mm (S4, S5)
• ShiftersShimano Deore SL-M6100-R, 12spd
• HandlebarNorco 6061 DB Alloy, 800mm, 25mm Rise(S2) - 35mm Rise(S3,S4,S5)
• Rear TireSchwalbe Albert Radial, Gravity Pro, Soft (2.5)
• Front TireSchwalbe Magic Mary, Trail casing, Ultra Soft , Radial, 29x2.5"
• Rear BrakeTRP Slate EVO, Organic Pads
• Rear ShockRockShox Rock Shox Super Deluxe Select, 205x60mm TR
• Rear WheelShimano FH-TC500-MS-B, 12x148mm Boost, Micro Spline, 32H, C-lock
• Front BrakeTRP Slate EVO, Organic Pads
• Front WheelShimano HB-MTC500-15-B,15x110mm Boost, 32H, C-lock
• Brake LeversTRP Slate EVO
• Bottom BracketBosch BDU38
• Rear Brake PadsOrganic Pads
• Rear DerailleurShimano Deore RD-M6100, SGS, 12spd
• Front Brake PadsOrganic Pads
• Rear Brake RotorTRP RS01E, 180mm, 2.3mm Thickness, Centerlock
• Front Brake RotorTRP RS01E (203mm)
